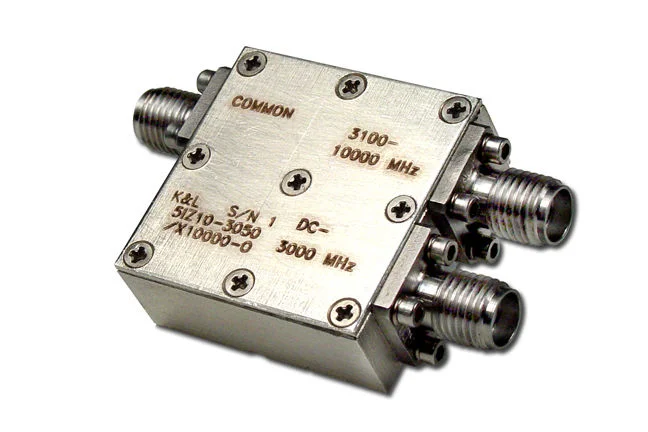

5IZ10-3050/X10000-O - LC Diplexer

MPG_KLM_FL_MP_FIX_2X_MUL_5IZ10-3050-X10000-O

Overview

Product SKU ID :

Product Name : 5IZ10-3050/X10000-O

15 Watts Power Over Passband Range

Contiguous VSWR

SMA Connectors

Applications: Radio and Aeronautical Navigation

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

3 dB Loss	VSWR	Shock	Vibration	Temperature	Rel. Humidity
@ DC-3000 MHz 3100-6000 MHz	2.0:1	20 G’s, ½ Sine, 11Ms	10 G’s, 10 Hz – 2000 Hz	-55° C to 85° C	0-95%
	@ 3050 MHz
