2DZ25-1227/1575-50 - GPS Miniature Ceramic Diplexer

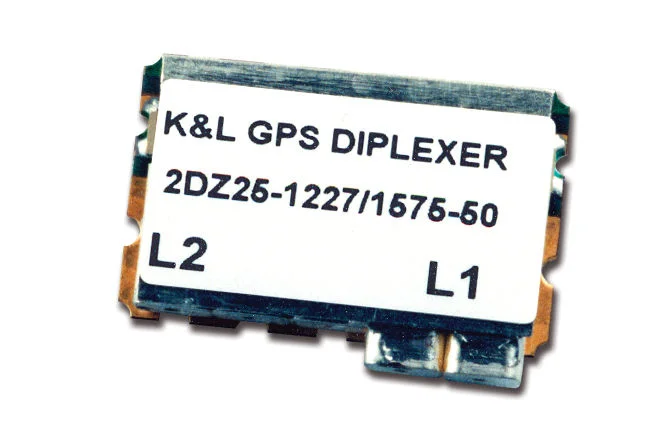

MPG_KLM_FL_MP_FIX_2X_MUL_2DZ25-1227-1575-50

Overview

Product SKU ID :

Product Name : 2DZ25-1227/1575-50

Low Insertion Loss

Small Size

Light Weight

Surface Mountable

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications

Channel 1 Center Frequency Channel 2 Center Frequency 3 dB Bandwidth Insertion Loss at f0 Co-Channel Rejection VSWR Operating Temperature Temp. Stability Dimensions
Channel 1 Channel 2
1227 MHz 1575 MHz 60 MHz nominal 60 MHz nominal 1.0 dB max (each channel) 30 dB min. 1.8:1 typical -40 to 85°C operating -50 to 125°C storage +2 to +11 ppm/C° 0.9”L x .65”W x .25”H [22.86 x 16.5 x 6.35 mm]
