11SZ10-2000/X3000-O/O

Overview

Product SKU ID:

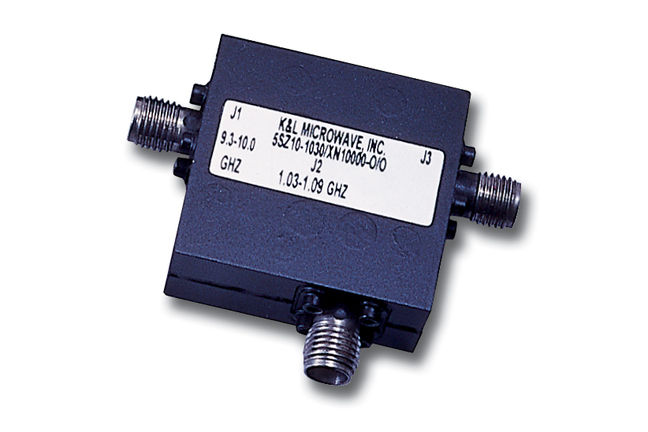

Product Name : 11SZ10-2000/X3000-O/O

Covers 2 GHz to 18 GHz Frequency Range

Excellent Environmental Performance

Ruggedized Package Design

Custom Designs Available

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

5 dB Nom. Crossover Frequency (GHz)	Passband @ <= 1 dB (GHz)	VSWR	Avg. Power (Watts)	Shape Factor (3 dB-30 dB)	Impedance (Ohms)	**Dimensions Inches / mm
5 dB Nom. Crossover Frequency (GHz)	Passband @ <= 1 dB (GHz)	VSWR	Avg. Power (Watts)	Shape Factor (3 dB-30 dB)	Impedance (Ohms)	L	W	H
2	DC - 1.9 2.1 - 4	02:01	15	1.3:1*	50	2.6 / 66.0	1.4 / 35.5	0.5 / 12.7
4	DC - 3.8 4.2 - 8	02:01	15	1.3:1*	50	1.8 / 45.7	1.3 / 33.0	0.5 / 12.7
6	DC - 5.7 6.3 - 18	02:01	15	1.3:1*	50	1.6 / 40.6	1.6 / 40.6	0.5 / 12.7
8	DC - 7.6 8.4 - 18	02:01	15	1.3:1*	50	1.4 / 35.6	1.4 / 35.6	0.5 / 12.7
10	DC - 9.5 10.5 - 16	02:01	15	1.3:1*	50	1.3 / 33.0	1.3 / 33.0	0.5 / 12.7
12	DC - 11.6 12.6 - 18	02:01	15	1.3:1*	50	1.2 / 30.0	1.2 / 30.0	0.5 / 12.7
Shock: 20 G’s, 1/2 Sine, 11Ms
Vibration: 10 G’s, 10 HZ - 2000 Hz
Vibration: 10 G’s, 10 HZ - 2000 Hz
Rel. Humidity: 0 — 95%
* Designs also available to offer 3 dB - 50 dB shape factor up to 1.15:1. Contact factory for details.
** Dimensions are determined with SMA connectors. Contact the factory for custom requirements.
