SUSPENDED SUBSTRATE LOWPASS FILTER

EW 446-01

Overview

Product SKU ID :

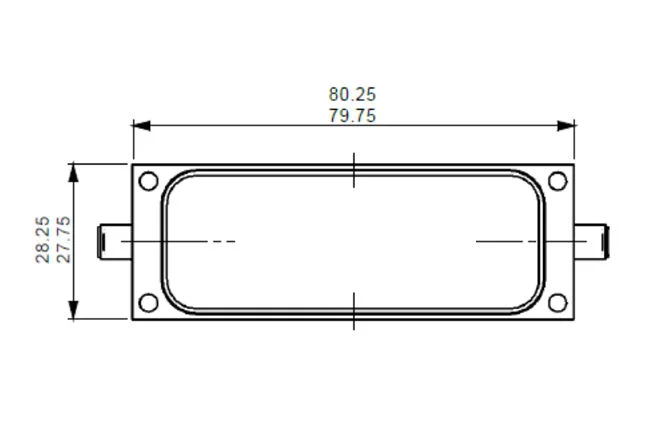

Product Name : EW 446-01

A low pass filter offering flat Group Delay and low deviation from Linear Phase, lends itself to use in lower frequency phase DF systems, whilst still offering good rejection of C and X Band signals.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because of the rugged package design, small size, high Q, and temperature stability, K&L Microwave’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Group Delay Variation	Deviation from Linear Phase	Return Loss	Rejection from 4.4 to 10.0 GHz	Power Handling	Operating temperature	Connectors	External Finish
DC to 3.6 GHz	0.7 dB max	0.6 nS max	±30° max	14 dB min	50 dB min	+20 dBm max	0 to 50°C	SMA Female	Matt Black
