Suspended Substrate Fixed Low Pass Filters

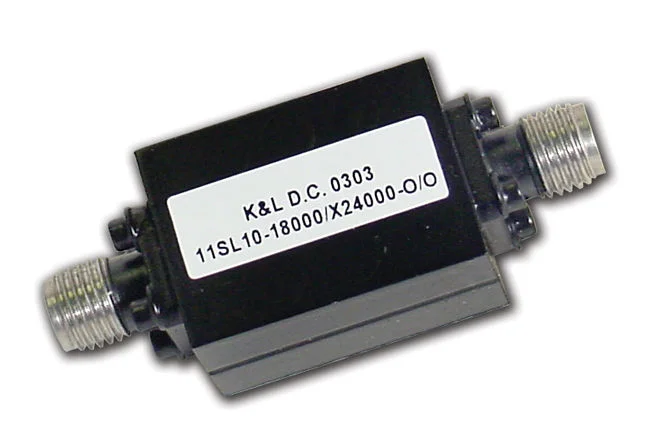

MPG_KLM_FL_LP_FIX_SS_MUL_11SL10-18000-X24000-O-O

Overview

Suspended Substrate Filters by MPG combine high Q factor and low-loss performance into a durable and temperature stable small package.L band, S band, C band, X band, Ku band, K band, Ka band and V band in bandpass, band reject, bandpass, high pass, low pass, diplexer and multiplexer designs.

Frequency Range: 1 to 18 GHz

Stopband: 50 dBc at only 15% from the band edge

Covers 2 GHz to 18 GHz Frequency Range
Excellent Environmental Performance
Ruggedized Package Design
Custom Designs Available*
Out of band rejections to 2x Fc

Find Products Catalog

Part Number	3 dB Cutoff (GHz)	Passband @ ≤ 1 dB (GHz)	VSWR	Avg. Power (Watts)	Shape Factor (3dB-30dB)	Impedance (Ohms)
11SL10-2000/T4000-O/O	2	DC-1.8	2:1	15	1:3:1*	50
11SL10-3000/T6000-O/O	3	DC-2.7	2:1	15	1:3:1*	50
11SL10-4000/T8000-O/O	4	DC-3.6	2:1	15	1:3:1*	50
11SL10-5000/T10000-O/O	5	DC-4.5	2:1	15	1:3:1*	50
11SL10-6000/T12000-O/O	6	DC-5.4	2:1	15	1:3:1*	50
11SL10-7000/T14000-O/O	7	DC-6.3	2:1	15	1:3:1*	50
11SL10-8000/T16000-O/O	8	DC-7.2	2:1	15	1:3:1*	50
11SL10-9000/T18000-O/O	9	DC-8.1	2:1	15	1:3:1*	50
11SL10-10000/T20000-O/O	10	DC-9	2:1	15	1:3:1*	50
11SL10-11000/T22000-O/O	11	DC-9.9	2:1	15	1:3:1*	50
11SL10-12000/T24000-O/O	12	DC-10.8	2:1	15	1:3:1*	50
11SL10-13000/T24000-O/O	13	DC-11.7	2:1	15	1:3:1*	50
11SL10-14000/T24000-O/O	14	DC-12.6	2:1	15	1:3:1*	50
11SL10-15000/T24000-O/O	15	DC-13.5	2:1	15	1:3:1*	50
11SL10-16000/T24000-O/O	16	DC-14.4	2:1	15	1:3:1*	50
11SL10-17000/T24000-O/O	17	DC-15.3	2:1	15	1:3:1*	50
11SL10-18000/T24000-O/O	18	DC-16.2	2:1	15	1:3:1*	50

** Dimensions Inches/mm
Part Number	L	W	H
11SL10-2000/T4000-O/O	2.0/50.8	1.5/38.1	0.5/12.7
11SL10-3000/T6000-O/O	1.9/48.3 1	1.3/33.0	0.5/12.7
11SL10-4000/T8000-O/O	1.8/45.7	1.0/25.4	0.5/12.7
11SL10-5000/T10000-O/O	1.5/38.1	1.0/25.4	0.5/12.7
11SL10-6000/T12000-O/O	1.3/33.0	0.9/22.9	0.5/12.7
11SL10-7000/T14000-O/O	1.1/27.9	0.8/20.3	0.5/12.7
11SL10-8000/T16000-O/O	1.1/27.9	0.75/19	0.5/12.7
11SL10-9000/T18000-O/O	1.1/27.9	0.75/19	0.5/12.7
11SL10-10000/T20000-O/O	1.0/25.4	0.7/17.8	0.5/12.7
11SL10-11000/T22000-O/O	1.0/25.4	0.7/17.8	0.5/12.7
11SL10-12000/T24000-O/O	1.0/25.4	0.65/16.5 0	0.5/12.7
11SL10-13000/T24000-O/O	0.9/22.9	0.65/16.5 0	0.5/12.7
11SL10-14000/T24000-O/O	0.9/22.9	0.65/16.5 0	0.5/12.7
11SL10-15000/T24000-O/O	0.9/22.9	0.6/15.2	0.5/12.7
11SL10-16000/T24000-O/O	0.9/22.9	0.65/16.5 0	0.5/12.7
11SL10-17000/T24000-O/O	0.9/22.9	0.65/16.5	0.5/12.7
11SL10-18000/T24000-O/O	.85/21.6	0.6/15.2	0.5/12.7

** Dimensions are determined with SMA connectors. Contact the factory for custom requirements.

Shock	20 G’s, 1/2 Sine, 11 Ms
Vibration	10 G’s, 10 HZ - 2000 Hz
Temperature	-55 to +85°C
Rel. Humidity	0 — 95%

Example To Order:
11SL10 — 2000/T6000 — O / O

Example	11	S	L	10	2000	T	2600	O	O
Code	1	2	3	4	5	6	7	8	9

Code	Description
1	Number of Elements
2	Suspended Substrate
3	Series (Low Pass)
4	Package (Contact Factory)
5	3 dB Cutoff Frequency
6	Supplemental Codes (See Page 13 of Catalog)
7	Upper Stopband Limit
8	Input Connector : See Connector Table
9	Output Connector: See Connector Table

Connector	Code
SMA Female	O
SMA Male	OP

About the Technology

MPG_KLM_FL_LP_FIX_SS_MUL_11SL10-2000-U6000-O-O

Suspended Substrate

Through the use of a photo-etched, copper clad substrate, Suspended Substrate Filters utilize air as the dielectric. The result is a filter capable of producing wide passbands and faster roll-off of stopbands.

The printed circuit technology used in our Suspended Substrate Filters also supports complex mechanical configurations by allowing other structures to be printed on the suspended substrate, including Combline Filters, Interdigital Filters, Hairpin Filters and Bandstop (Notch) Filters. Highpass and lowpass Suspended Substrate Filters can also be interconnected to create broadband bandpass filters or diplexers.

The durable construction of the Suspended Substrate Filter can be customized to meet all relevant military specifications, including those for vibration, since the interior walls in the housing are designed to hold the circuit and prevent movement.

Product Inquiry

Featured Brands

K&L Microwave

BSC

Features & Specifications

Suspended Substrate Filter frequency: L band, S band, C band, X band, Ku band, K band, Ka band and V band from 1 to 120 GHz.

Suspended Substrate Filter features: Suspended Substrate Filters are available in bandwidths from 50% to 100% and offer a Q range of 250 to 750 in 3 to 11 sections. Connectorized mounts are available. Suspended substrate filters are manufactured in bandpass, band reject, bandpass, high pass, low pass, diplexer and multiplexer designs.

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Applications

Because of the rugged package design, small size, high Q, and temperature stability, MPG’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
