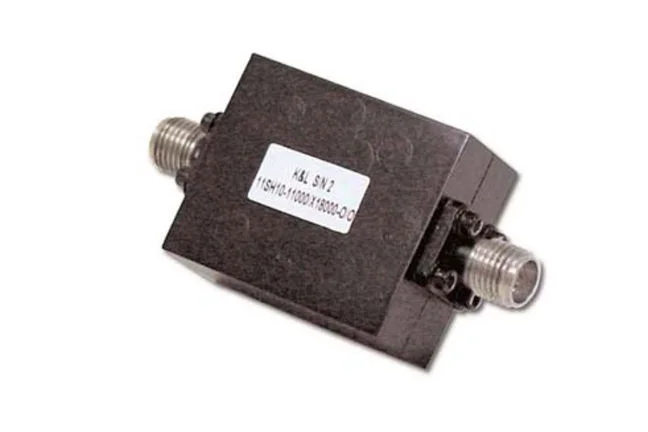

Fixed High Pass Filter
Overview
High Pass Filters pass high frequencies while rejecting low frequencies. Due to MPG’s extensive engineering expertise and history in manufacturing and designing microwave filter components, we are able to customize a wide range of RF High Pass Filter topologies to meet multiple applications across industries. Our rugged package designs and customized engineering help ensure temperature stability, low insertion loss and sharp selectivity.
High Pass Filters are available in a number of topologies, including Microminiature, Lumped Component, Suspended Substrate, KeL-Com and Mini-Max.
Special Features
High Pass Filters provide strong rejection, supporting bandwidths from 2% to 200%, in configurations of 3 to 8 sections. Filters are available in a Q range of .5 GHz to 20 GHz.
MPG Sales
Ordering Information
Parts & Quotes
- Please request a quote on a specific designs.
- When considering a particular family of parts, use Filter Wizard and QuEST to determine specific part number.
Specifications
RF High Pass Filter features: High Pass Filters provide strong rejection, supporting bandwidths from 2% to 200%, in configurations of 3 to 8 sections. Filters are available in a Q range of .5 GHz to 20 GHz.
Benefits
MODULAR
SWaP
CUSTOM DESIGN
Applications
K&L High Pass Filters are custom-fit to a variety of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
Fixed High Pass Filters
