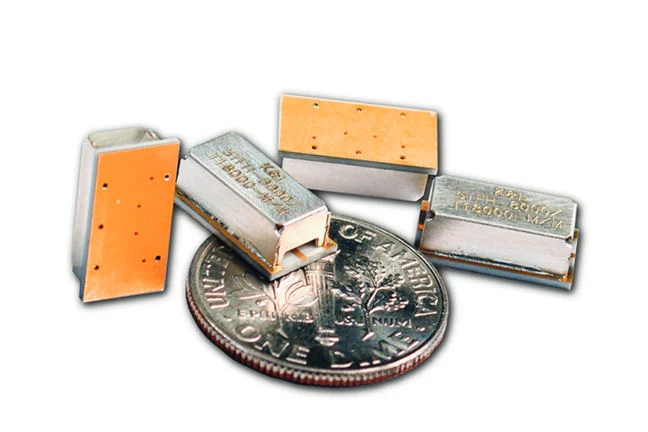

Thin Film Fixed High Pass Filters


MPG_KLM_FL_HP_FIX_TF_MUL_AH-Series

Overview

Our extensive industry experience and engineering capabilities allow us to customize Thin Film Filters within a highly repeatable design. The result is excellent temperature stability, low loss and consistent performance at a lower cost than most competitors.

S band, C band, X band, Ku band, K band, Ka band, V band in bandpass, band reject, high pass, low pass, diplexer and multiplexer designs.

Frequency Range: 3 GHz to 50 GHz

Bandwidth: 3% to 70%

Find Products Catalog

About the technology

MPG_KLM_FL_HP_FIX_TF_MUL_AH-Series

Thin Film

Thin Film Filters are the smallest of the MPG's filter line, able to minimize interference due to a unique construction method. Thin Film Filters are printed on a high dielectric material, such as ceramic, enabling a compact product with strong selectivity and out of band rejection.

Product Inquiry

Features and Specifications

Thin Film Filter frequency: S band, C band, X band, Ku band, K band, Ka band, V band from 3 GHz to 50 GHz.

Thin Film Filter features: Thin Film Filters are available in bandwidths from 3% to 70%, in configurations of 2 to 11 sections. Filters are available in a Q range of 250 to 750 with a connectorized interface and in bandpass, band reject, high pass, low pass, diplexer and multiplexer designs.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to its slim size and ability to minimize interference,MPG's Thin Film Filters can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
