MINI-POLE® Series

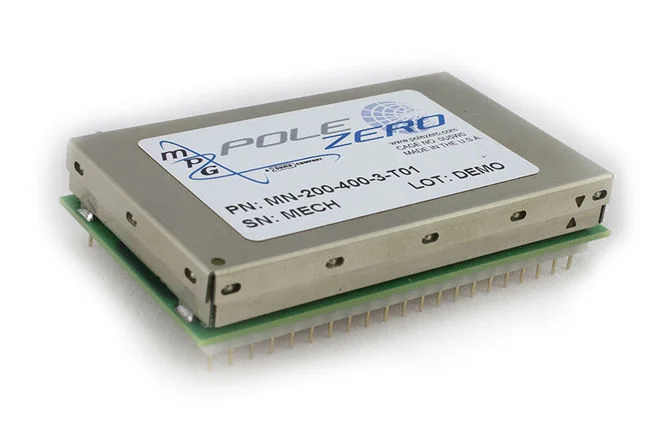

The MINI-POLE® covers seven frequency ranges and custom configurations and designs are available upon request.


mini-pole

Overview

Product SKU ID:

Product Name :MINI-POLE® Series

The MINI-POLE® Series of tunable filters is optimized for size, RF power handling, low distortion, and exceptional selectivity. The product line includes several standard designs in various bands to support a myriad of applications.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

The reduced size and optimal RF power handling make Pole/Zero’s NANO-POLE Filter applicable for multiple markets, including defense, EW, radar, communications, satcom, and automated test equipment.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

Frequency Coverage (8 bands): Input/Output Impedance: Inband RF Power Handling:

Inband Third Order

Intercept Point:

Inband Second Order

Intercept Point:

Tuning Control: Tuning Speed: DC Power: Operating Temperature Range : Center Frequency Drift:
1.5 MHz to 700 MHz 50Ω Up to 1.25 Watts +40 dBm (input, fo > 30 MHz) +100 dBm (input) 8 bit parallel 10 µS (f0 > 30 MHz, +10 dBm reference)

+5 VDC @ 10 to 250 mA

+100 VDC @ 1mA (T01) or

+100 VDC @ 2mA (T02)

-40 to + 85°C 80 PPM/°C
