Ku BAND RECEIVE FILTER

SATCOM 397-01

Overview

Product SKU ID :

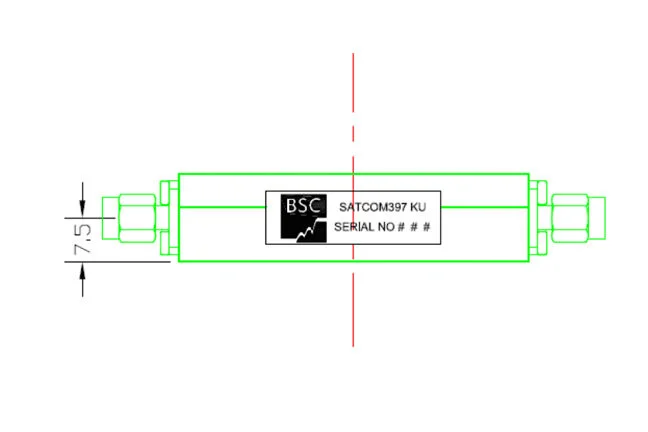

Product Name : SATCOM 397-01

Designed for compact receivers, this combline filter offers low loss and high transmit rejection in a compact package, with coaxial connectors for ease of integration.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Return Loss	Passband Ripple over any 72 MHz	Group Delay over passband	Group Delay over any 36 MHz	Rejection from DC to 9.5 GHz	Rejection from 14.0 to 24.0 GHz	Power Handling	Operating temperature	Connectors	External Finish
10.7 to 12.75 GHz	1.2 dB max	15 dB min	0.3 dB pp max	2 nS pp max	1 nS pp max	60 dB min	40 dB min	1 W max	-0 to 70°C	SMA Male	Matt Black
