Waveguide Fixed Band Pass Filters

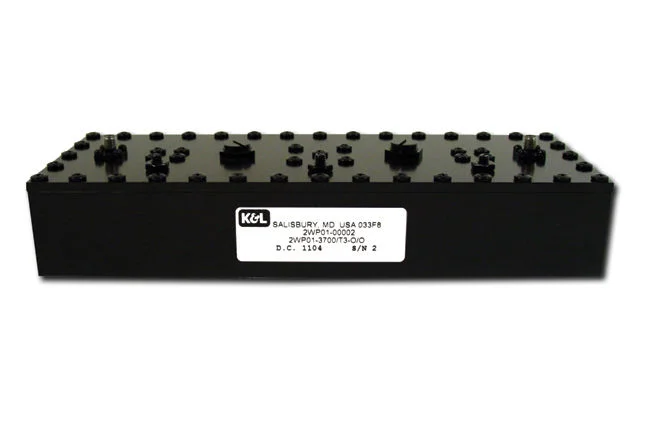

MPG_KLM_FL_BP_FIX_WG_MUL_2WP01-3700-T3-O-O

Overview

MPG designs and manufactures packaged and custom RF Waveguide filters. All MPG RF Waveguide filters can be manufactured for lower quantities. L band, S band, C band, X band, Ku band, K band, Ka band and V band in bandpass, band reject, high pass, low pass, diplexer and multiplexer designs.

Frequency Range: 1 GHz to 67 GHz

Bandwidth: 0.1% to 20%

Find Products Catalog

About The Technology

MPG_KLM_FL_BP_FIX_WG_MUL_2WP01-3700-T3-O-O

Waveguide

Construction of our RF Waveguide filters consists of half wavelength chambers, separated by inductive irises. Posts are soldered to the waveguide at both the top and the bottom to appropriately propagate electromagnetic energy. Our RF Waveguide filters are available in both rectangular and circular modes.

Rectangular mode filters are designated in the TE 101 mode from 2.5 to 94 GHz. Circular mode Waveguide filters are TE111 mode filters, fitting bandwidths from 0.1 to 1.8%.

Product Inquiry

Features & Specifications

A distinct advantage of MPG rectangular mode filters is the combined use of proprietary and purchased software, executed to reduce tuning time and deliver a high quality, optimized filter solution capable of realizing a high “Q” factor.

Frequency:L band, S band, C band, X band, Ku band, K band, Ka band and V band from 1 GHz to 67 GHz.

Features: Waveguide filters are available in bandwidths from .1% to 20%, in low loss configurations of 2 to 20 sections. Filters are available in a Q range of ~25K @ 1 GHZ to 2500 @25 GHz+. Connectorized and waveguide flange mounts are available. Waveguide filters come in bandpass, band reject, high pass, low pass, diplexer and multiplexer designs.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Application

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, RADAR, communications, SATACOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

For all filter types, MPG can provide a choice of connectors or flange mounts, applicable to the filter’s frequency range, or customize mounting solutions according to customer specifications.
