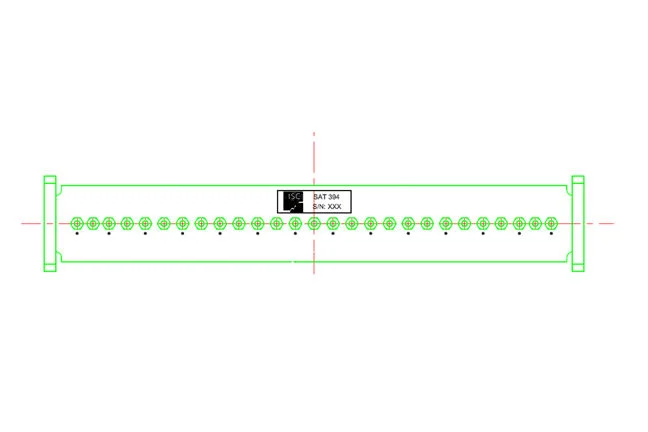

Ku BAND RECEIVE FILTER

SATCOM 394-02


SATCOM-394-02

Overview

Product SKU ID :

Product Name : SATCOM 394-02

Specifically designed for feed arm integration, this Ku Band receive filter offers low passband loss and high rejection of transmitted power protecting the LNB from desensitisation. With flat group delay, signal waveforms are preserved. Painted white with waveguide flanges, the filter is suitable for external use.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

Passband Insertion Loss Return Loss Passband Flatness over any 36 MHz Group Delay over any 40 MHz Rejection from 12.75 to 14.5 GHz Power Handling Operating temperature Connectors External Finish
10.7 to 11.7 GHz 0.4 dB max 18 dB min 0.1 dB max 1 nS max 110 dB min 10 W max -45 to 85°C UBR120 PBR120 Gloss White
