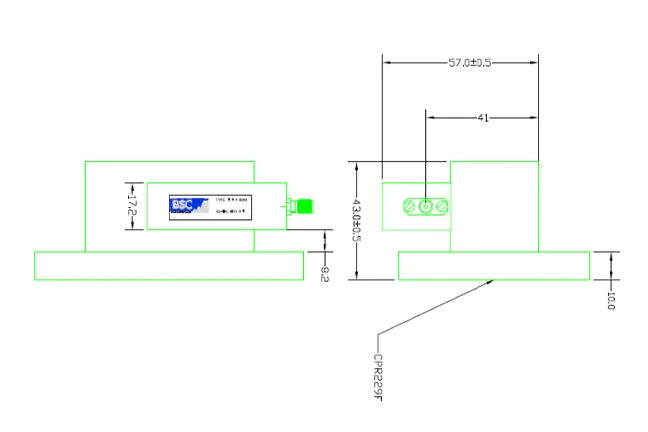

C BAND RECEIVE FILTER TRANSITION SATCOM 322-01

Overview

Product SKU ID:

Product Name : ATC 502-01

Taking advantage of its world leading filter design, BSC are able to offer a filter transition from waveguide to coax over an extended C Band Rx frequency range, whilst also offering low insertion loss, flat group delay and high Tx rejection characteristics. Ideal when space is at a premium.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 5.85 to 6.75 GHz	Group Delay	Power Handling	Operating Temperature	Input Connector	Output Connector	External Finish
3.4 to 4.2 GHz	0.2 dB max	15 dB min	60 dB min	1 nS / 40 MHz	5 W max	-20 to 60°C	SMA Female	CPR229G Flange	White Gloss Epoxy
				5 nS whole band
