Product Name : DLINK 458-01

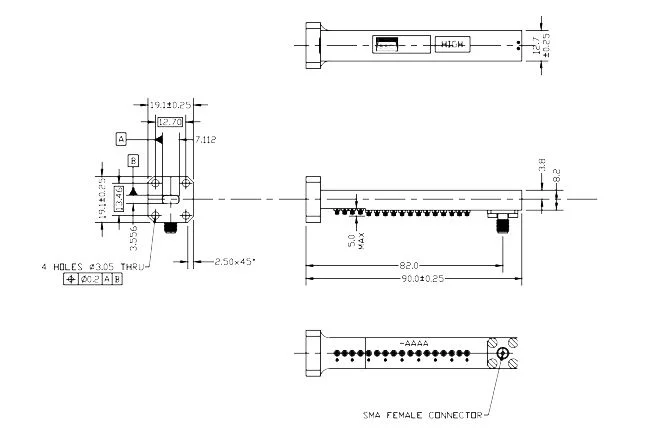

For Point to Point fixed microwave service in the 31 GHz band and Ka Band satellite uplinks as well as Global Remote Sensing applications, BSC offer the DLINK 458. With a waveguide to coaxial adapter integrated into the filter and flat insertion loss through the passband, the filter lends itself to ease of integration.
Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.
|Passband||Insertion Loss||Insertion Loss Variation||Return Loss||Rejection from 26.0 to 31.3 GHz||Rejection from 32.0 to 40.0 GHz||Power Handling||Operating temperature||Connectors||External Finish|
|31.5 to 31.8 GHz||1.5 dB max||0.2 dB over any 27 MHz band||20 dB min||30 dB min||30 dB min||2 W max||-30 to 60°C||UG599/U||Matt Black|
BSC is based in York, UK, BSC offers its full range of non-ITAR products to the RF global marketplace, whether for small quick turn development runs or high volumes associated with series production of phased array RADAR and EW systems and commercial market place needs. A small selection of the active microwave assemblies and modules offered include front end preselectors, Switched Filters for Antenna front ends, IF assemblies, DRFM front ends, adaptive filtering including switched multiplexers, switched filter banks, and Software Defined Radio filter assemblies.
