DLINK 457-01

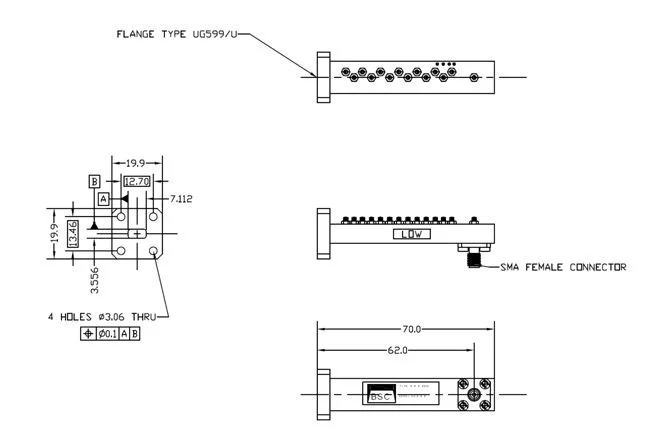

MPG_BSC_FL_BP_FIX_WG_CM_DLINK-457-01

Overview

Product SKU ID:

Product Name : DLINK 457-01

For Point to Point fixed microwave service in the 31 GHz band and Ka Band satellite uplinks, BSC offer the DLINK 457. With a waveguide to coaxial adapter integrated into the filter and flat insertion loss through the passband, the filter lends itself to ease of integration.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications

Passband Insertion Loss Insertion Loss Variation Return Loss Rejection from 26.0 to 30.75 GHz Rejection from 31.5 to 40.0 GHz Power Handling Operating Temperature Connectors External Finish
31.0 to 31.25 GHz 1.5 dB max 0.2 dB over any 27 MHz band 20 dB min 40 dB min 40 dB min 2 W max -30 to 60°C UG599/U Dark Grey
SMA Female

Resources

Featured Brand

BSC_Logo

BSC

BSC is based in York, UK, BSC offers its full range of non-ITAR products to the RF global marketplace, whether for small quick turn development runs or high volumes associated with series production of phased array RADAR and EW systems and commercial market place needs. A small selection of the active microwave assemblies and modules offered include front end preselectors, Switched Filters for Antenna front ends, IF assemblies, DRFM front ends, adaptive filtering including switched multiplexers, switched filter banks, and Software Defined Radio filter assemblies.
