7LB50-155/X38-N/N

Overview

Product SKU ID :

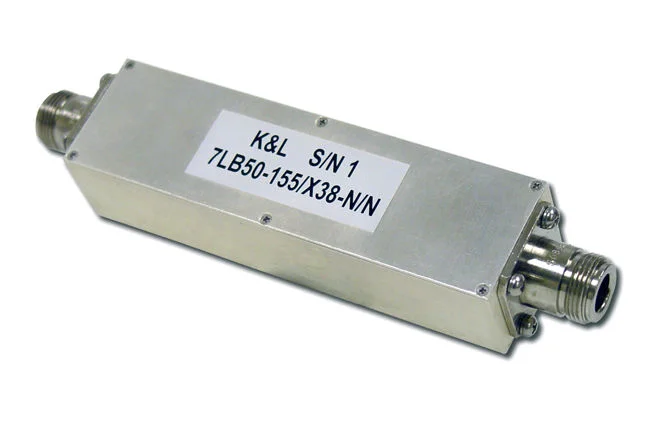

Product Name : 7LB50-155/X38-N/N

Type N Connectors

Power: 40 Watts

Low Loss

Flat Delay

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Insertion Loss	VSWR	Stopbands 15 dB min.		Environmental Specs				Dimensions
Insertion Loss	VSWR	@124 & 186 MHz	@112 &198 MHz	Shock	Vibration	Temperature	Relative Humidity	Dimensions
<1.0 dB	1.5:1 Across passband	>25 dB	>35 dB	20 G’s, 1/2 Sine, 11ms	10 G’s, 10 Hz - 2000 Hz	-55° C to +85° C	0-95%	4.5" X 1.25" X 1.0"
