Lumped Element Fixed Band Pass Filters

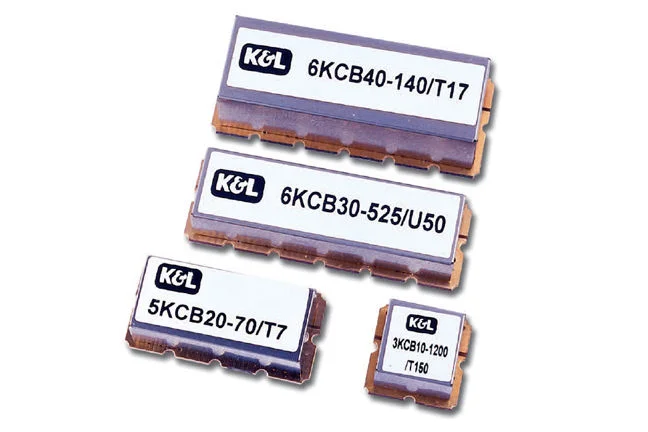

LumpedComponentsBandPass

Overview

Thanks to durable standard packaging and our team of experienced engineers, MPG can provide customized Lumped Element Filters (LC Filters) at a reduced time to market. Standard packages are available for most applications, including those where severe environmental stresses, such as temperature, humidity, shock, vibrations and acceleration are common. HF, VHF and UHF in bandpass, band reject, high pass and low pass designs.

  • Ideal for High Volume, Short Lead Time Requirement
  • Designed for Low Cost Applications
  • Covers the 10 MHz to 3000 MHz Frequency Range
  • 3 dB BW Available 5 to 15%
  • Designs Available in 3 - 6 Sections
  • Chebyshev Design Response
  • See page 46 for Reflow Profile and Suggested Mounting Information.

Frequency Range: 0.5 MHz to 10 GHz

Bandwidth: 1% to 200%

Find Product Catalog

Center Frequency (MHz) 3 dB % BWVSWRAttenuationImpedance (Ohms)Number of SectionsTemperaturePackage Style
10-3000*5 to 15%2.0:1 Max- 60 dBc503-6-40 to +85 °COpen frame, leadless surface mount.
See page 49

*Different circuit topologies available for non-standard bandwidth
For more complete specifications please visit MPG Wizards.
Lowpass and Highpass filters also available. Contact factory for details.

Example To Order:
3KCB10 — 1000/T4000 — U / 50-1.1

Example3KCB101000U501.1
Code12345678
CodeDescription
1Number of Sections: 3-6
2Series
3Band Pass
4Package Style - Open frame, leadless surface mount
 10 = 0.5” x 0.5”  [12.7mm x 12.7mm]
  20 = 1.0” x 0.5”  [25.4mm x 12.7mm]
   30 = 1.5” x 0.5”  [38.1mm x 12.7mm]
   40 = 1.5” x 0.6”  [38.1mm x 15.24mm]
5Center Frequency MHz
6Supplemental Codes (See Page 13 of Catalog)
7Bandwidth MHz
8Version Number

Mechanical Line Drawing

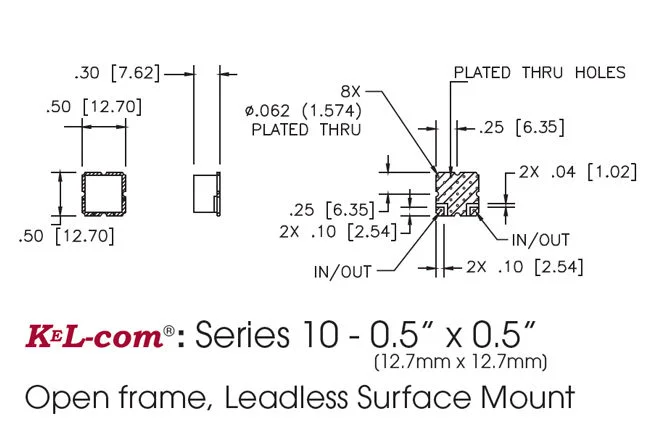

LC_BP_Series-10

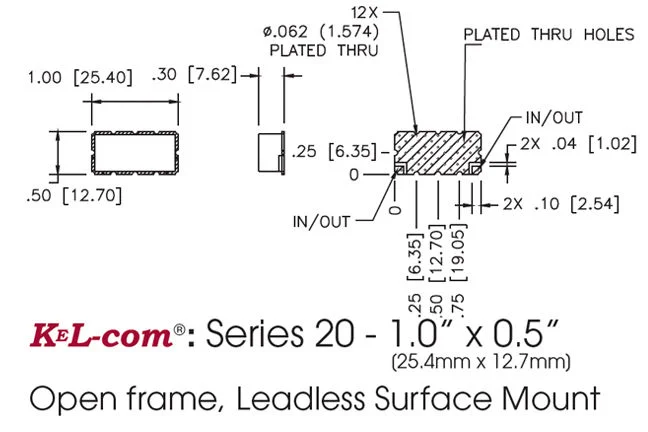

LC_BP_Series-20

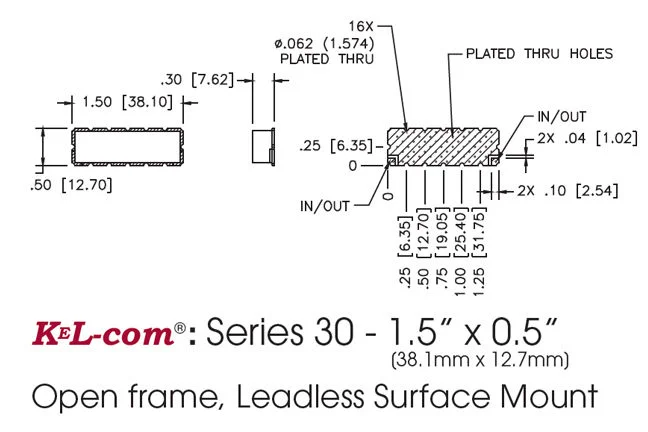

LC_BP_Series-30

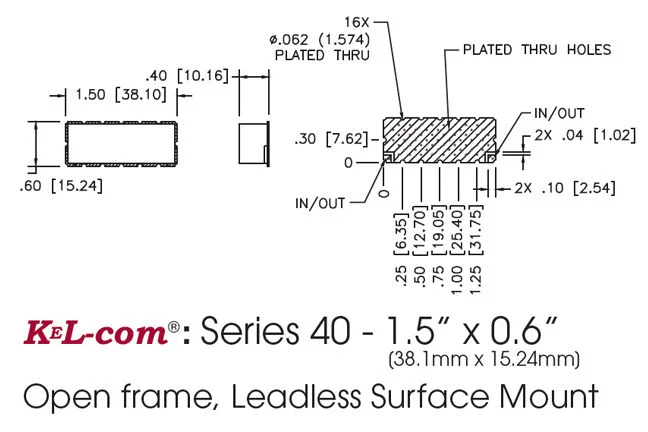

LC_BP_Series-40

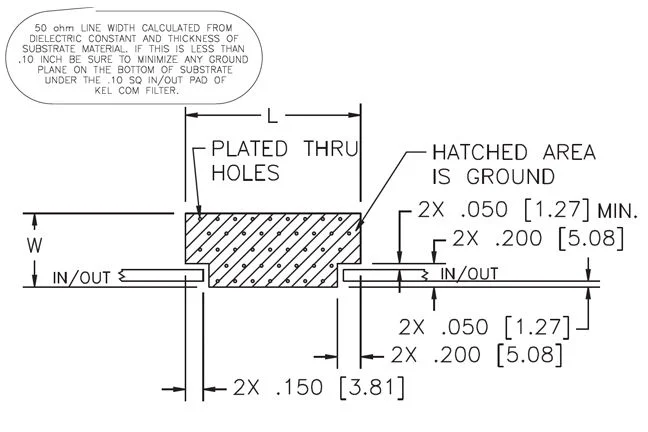

PCB Line Drawing

LC_BP_PCBLayout

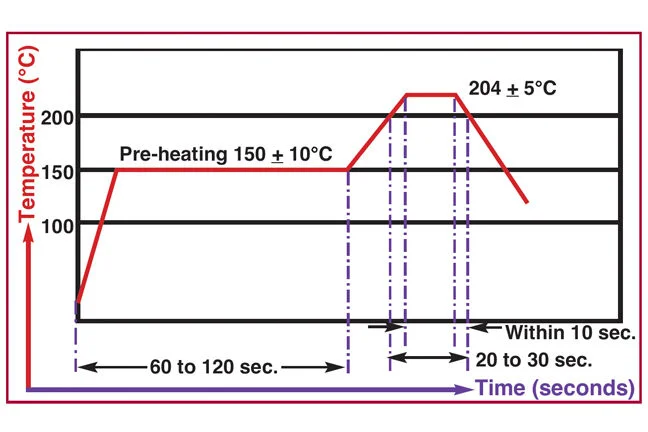

Typical Reflow Profile/Installation Notes

reflow

Installation Notes:
* The rate of heating and cooling must be controlled to preclude thermal cracking of the devices.Processes, heating or cooling, should not exceed a rate of 200°C per minute. Spikes must not exceed 100°C maximum for any solder operation. Avoid forced cooling or contact with heat sinks, such as conveyor belts, metal tables or cleaning solutions, before the units reach ambient temperatures.

  • A typical re-flow profile is provided above.
  • All solder-able surfaces must be free of contaminants for maximum solder ability
  • The relative mass of all components should be considered when establishing a re-flow procedure.
  • Higher density board populations may take longer to achieve re-flow temperatures.
  • SMT Products can be cleaned via solvent based, aqueous, semi-aqueous, and alcohol based systems.
  • Units must be completely dried as moisture could cause false electrical performance readings.
  • Mishandling of product may result in damage to the device (please do not bend RF leads, if applicable
  • All SMT filters are assembled using SN96 high temperature solder, as a minimum.
  • K&L recommends that customers use SN60 or SN63 or an equivalent during installation for signal and ground connections.
  • The rate of heating and cooling must be controlled to preclude thermal cracking of the devices.
  • Processes, heating or cooling, should not exceed a rate of 200°C per minute.
  • Spikes must not exceed 100°C maximum for any solder operation.
  • Avoid forced cooling or contact with heat sinks, such as conveyor belts, metal tables or cleaning solutions, before the units reach ambient temperatures.

About The Technology

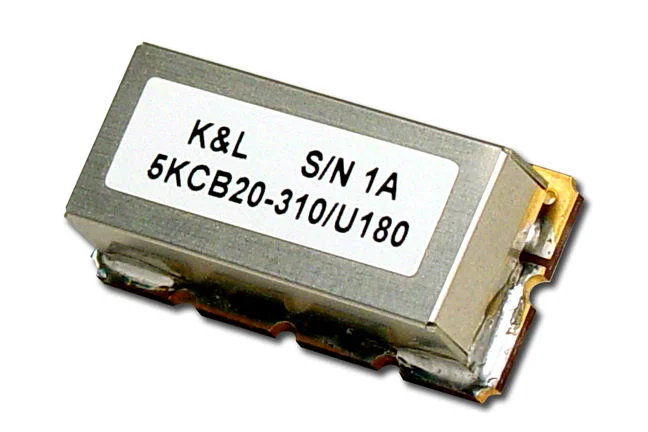

MPG_KLM_FL_BP_FIX_LE_MUL_5KCB20-310-U180

Lumped Element

LC filters are passive devices, smaller than the operating wavelength, to permit a wider bandwidth within compact packaging. Special design capabilities for our Lumped Element Filters include, but are not limited to, elliptical, pseudo-elliptical, amplitude equalization, group delay equalization, bessel, gaussian, and highpower.

Product Inquiry

Features & Specifications

MPG’s Lumped Element Filters are offered in a broad range of frequencies, topologies, and mechanical configurations and can be packaged to withstand severe environmental stresses, including temperature, humidity, shock, vibration, and acceleration.

Frequency: 0.5 MHz to 10 GHz

Features: LC Filters are available in bandwidths from 1% to 200%, in configurations of 2 to 10 sections. Filters are available in a Q range of 400 to 800 with bandpass, band reject, high pass and low pass designs available.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the innovative and customizable nature of MPG's Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
