SATCOM 360-01

Overview

Product SKU ID :

Product Name : SATCOM 360-01

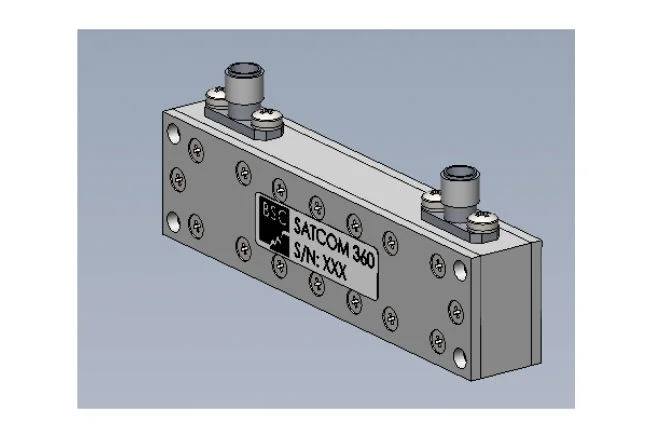

This compact X Band Satellite receive filter from BSC offers very low insertion loss across the full band with excellent rejection of high-side local oscillator signals.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, BSC Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection at 8.7 GHz	Power Handling	Operating temperature	Connectors	External Finish
7.25 to 7.75 GHz	0.7 dB max	18 dB min	70 dB min	5 W max	-20 to 50°C	SMA Female	Gloss Black

Resources

Pole/Zero ICE Product Catalog

View

BSC Filters Brochure

View

K&L Microwave Filters Product Catalog

View

Tunable Filters Brochure

View

Access Filter Wizard

Visit

Access QuEST

Visit

View All

Featured Brand

BSC

BSC is based in York, UK, BSC offers its full range of non-ITAR products to the RF global marketplace, whether for small quick turn development runs or high volumes associated with series production of phased array RADAR and EW systems and commercial market place needs. A small selection of the active microwave assemblies and modules offered include front end preselectors, Switched Filters for Antenna front ends, IF assemblies, DRFM front ends, adaptive filtering including switched multiplexers, switched filter banks, and Software Defined Radio filter assemblies.

Learn More Find Products
