Combline Fixed Band Pass Filters

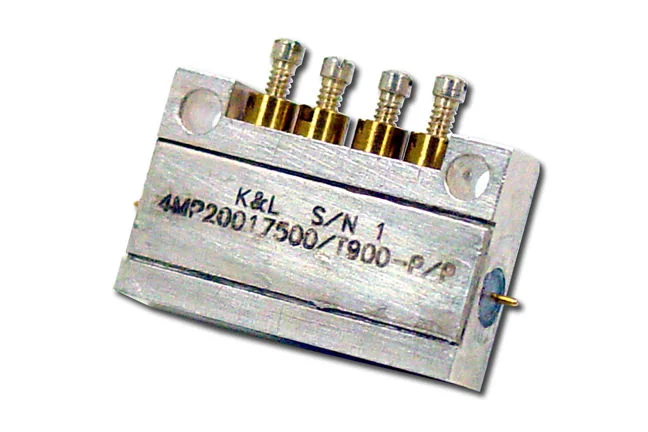

KLM_FL_BP_FIX_CB_MUL_4MP20-17500-T900-P-P

Overview

Standing up to severe conditions, MPG’s Combline Filter series offers high Q performance in a ruggedly designed package. VHF and UHF in bandpass or band reject designs. Frequency Range (If Applicable): 0.27 to 3 GHz

Frequency Range: 500 MHz to 40 GHz

Bandwidth: 3% to 18%

Find Products Catalog

About The Technology

MPG_KLM_FL_BP_FIX_CB_SP_8MP20-7140-H500-PX-PX

Band Pass Combline Filters

By replacing the inductors in a lumped element filter with distributed inductors or lengths of transmission line, and combining with lumped capacitors, Combline Filters support narrowband, low loss and VSWR applications. Given the durable packaging, MPG’s Combline Filter can be manufactured for a range of narrowband uses, with smaller package sizes available to fit applications where lower Q levels can be tolerated.

Product Inquiry

Features & Specifications

Frequency: VHF and UHF from 500 MHz to 40 GHz (L band, S band, C band, X band, Ku band, K band, Ka band).

Features: Combline Filters are available in bandwidths from 3% to 18%, and configurations of 2 to 17 sections. Combine filters offer a Q range of 750 to 10,000 with bandpass or band reject designs available.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the durable packaging and high performance, MPG's Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
