GPS 514-01

Overview

Product SKU ID :

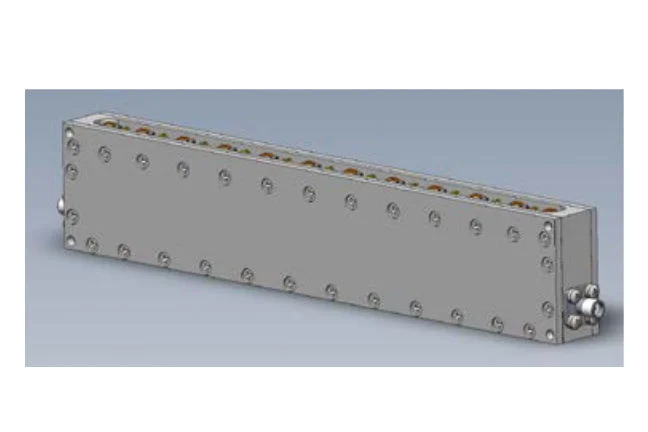

Product Name : GPS 514-01

BSC offer a wide range of high performance filters for GPS applications. The GPS 514 filter is a narrowband bandpass filter designed to work with GPS L1 frequencies. Offering low insertion loss and high out of band rejection this filter lends itself well to integration with receiver systems.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, K&L Microwave Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband	Passband Insertion Loss	Return Loss	Rejection from DC to 1520 MHz	Rejection at 1613 MHz	Power Handling	Operating temperature	Connectors	Finish
1545 to 1605 MHz	2.0 dB max	14 dB min	40 dB min	40 dB min	5 W CW max	0 to 50°C	SMA Female	Matt Black
