SUSPENDED SUBSTRATE LOWPASS FILTER

EW 445-01

Overview

Product SKU ID :

Product Name : EW 445-02

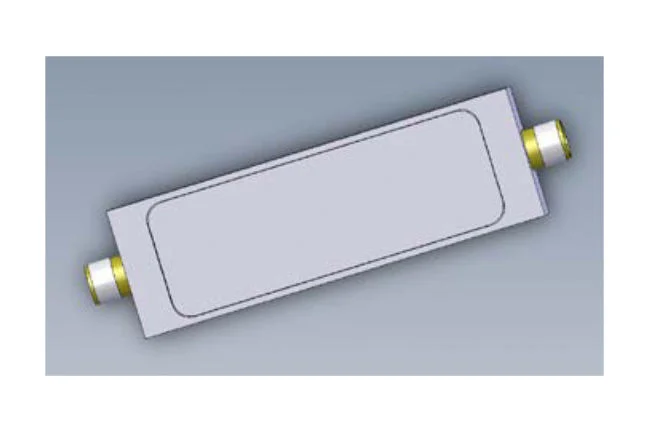

Ideal for incorporation as a roofing filter in low band ESM suites, this filter provides 40 dB of rejection above 6.5 GHz.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because of the rugged package design, small size, high Q, and temperature stability, K&L Microwave’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Passband Flatness	Return Loss	Rejection from 6.5 to 18.0 GHz	Power Handling	Operating temperature	Connectors	External Finish
DC to 6.0 GHz	1.5 dB max	±0.7 dB max	14 dB min	40 dB min	+23 dBm max	0 to 50°C	SMA Female	Matt Black
