Product SKU ID :

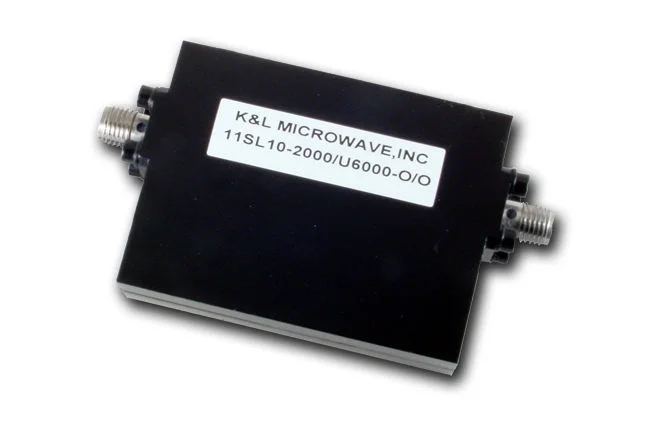

Product Name : 11SL10-2000/U6000-O/O
Insertion Loss: <1dB @ DC to 2000 MHz
VSWR: 1.5:1 @ DC to 2000 MHz
Stopbands: >50 dB @ 2300 MHz
Dimensions: 2" x 1.5" x 0.5"
Because of the rugged package design, small size, high Q, and temperature stability, K&L Microwave’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
Insertion Loss | Outline Dimensions | Environmental Specs | VSWR | |||
<1 dB @ DC to 2,000 MHz | 2” x1.5” x .5” | Shock | Vibration | Temperature | Relative Humidity | 1.5:1 @ DC to 2,000 MHz >50 dB @ 2,300 MHz stopbands |
20G’s, 1/2 sine, 11 Ms | 10 G’s. 10-2,000 Hz | -55 to +85 Degrees C | 0-95% |
Since 1971, we’ve aggressively invested in innovation to deliver interference mitigation products built to even the most exacting specifications. By taking control of the internal design and production processes, K&L Microwave can work collaboratively with customers, employing our high-quality standards and industry expertise to develop custom solutions across a full line of applications.
Our line of filters, duplexer, and subassemblies includes multiple topologies, including Ceramic, Lumped Element, Cavity, Waveguide, and Tunable Filters.
