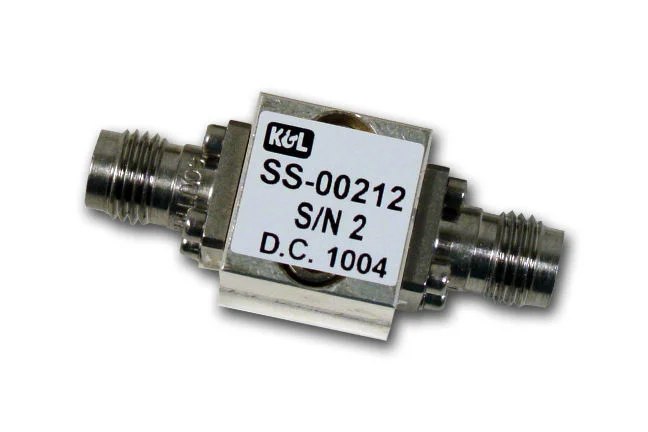

SS-00212

Overview

Product SKU ID:

Product Name:SS-00212

Passes from 18 to 50GHz while rejecting more than 70dB below 12GHz.

Low loss, small size. No RF alignment required.

Available in 2.92 mm connector for 18-40GHz band and 2.4 mm connector for 18-50GHz band.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	V.S.W.R	Rejection	Mechanical Dimensions	Connectors
18-50 GHz	2:1	DC-12 GHz: 70 dB min	: 0.5” x 0.5” x 0.5”	2.4 mm(f)
