SPCL-00702

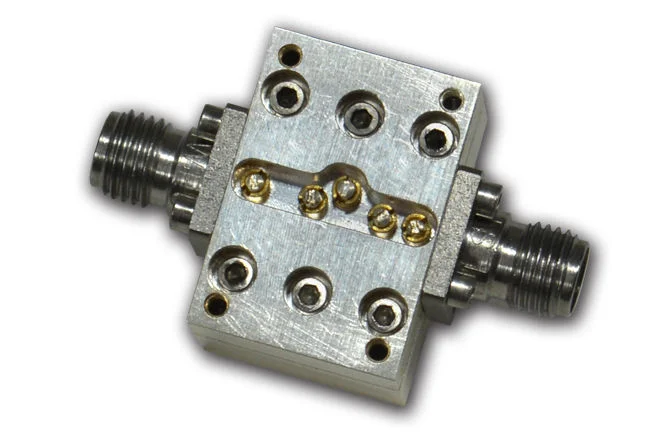

MPGKLM_FL_HP_FIX_SS_MUL_SPCL-00702

Overview

Product SKU ID:

Product Name:SPCL-00702

Small Size: .5" x .5" x .5"

K Female Connectors

Repeatable Suspended Substrate Design

Broadband Receiving Systems

Harmoinc Testing

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

PassbandInsertion LossVSWRRejectionPower Handling
2 to 40 GHz1 dB Typical02:0133 dB DC - 1 GHz2 watts
4 dB at 2 GHz
5 dB at 40 GHz
