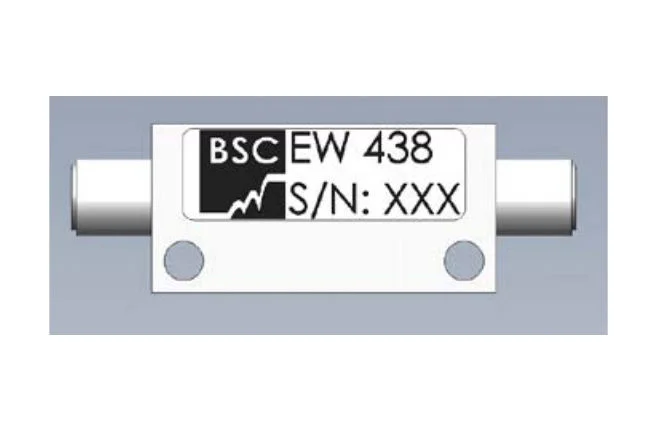

SUSPENDED SUBSTRATE HIGHPASS FILTER

EW 438-04

Overview

Product SKU:

Product Name: EW 438-04

Designed to protect K and Ku Band receiver systems from signals below 16 GHz, with low insertion loss this filter has minimal impact on systems sensitivity whilst providing over 60 dB isolation form unwanted signals.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because of the rugged package design, small size, high Q, and temperature stability, K&L Microwave’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion loss	Passband Ripple	Return Loss	Rejection from DC to 2.505 GHz	Power Handling	Operating temperature	Connectors	External Finish
18.0 to 40.0 GHz	1.5 dB max	±0.6 dB max	10 dB min	60 dB min	2 W CW max	-54 to 125°C	K-Type Female	Matt Black
