11SH10-11000/U18000-O/O

Overview

Product SKU ID:

Product Name: 11SH10-11000/U18000-O/O

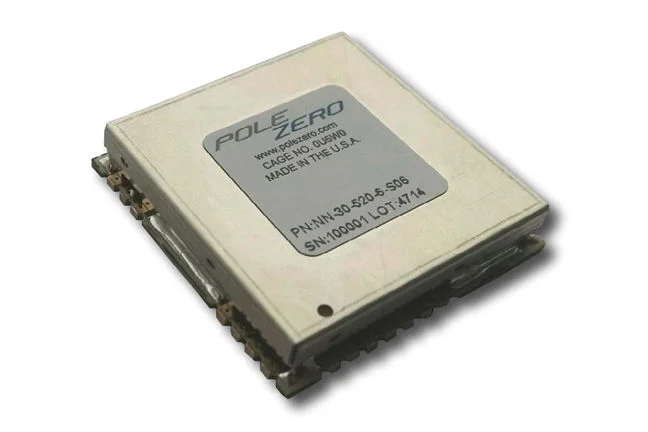

The NANO-POLE® Extended Range Series of tunable filters was developed to address applications needing an extremely small surface-mount package with low power consumption. Wide tuning range is accomplished with careful design to minimize size and power consumption.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Insertion Loss	VSWR	Attenuation	Shock	Vibration	Temperature	Rel. Humidity
1.0 dB	1.5:1	55 dB	20 G’s, 1/2 Sine, 11Ms	10 G’s, 10 Hz - 2000 Hz	-55° C to 85° C	0 - 95%
11 to 18 GHz
