11SH10-1000/T6000-O/O

Overview

Product SKU ID:

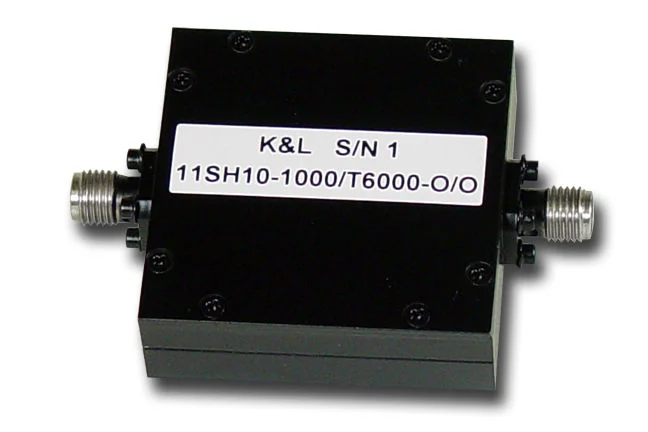

Product Name:11SH10-1000/T6000-O/O

Suspended Substrate and Chip&Wire Technology

Plated Thru Hole Board

SMA Connectors

Aeronautical Navigation

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

3 dB cutoff	Insertion Loss	VSWR 2.0:1	Stopbands >30 dB	Shock	Vibration	Temperature	Rel. Humidity
@1.0Hz	@0.1 GHz -6.0 GHz	@ 1.1 GHz - 6.0 GHz	@DC - .75 GHz	20 G’s, 1/2 Sine, 11Ms	10 G’s, 10 Hz - 2000 Hz	-55° C to 85° C	0 - 95%
