GPS NOTCH FILTER

GPS 516-01

Overview

Product SKU:

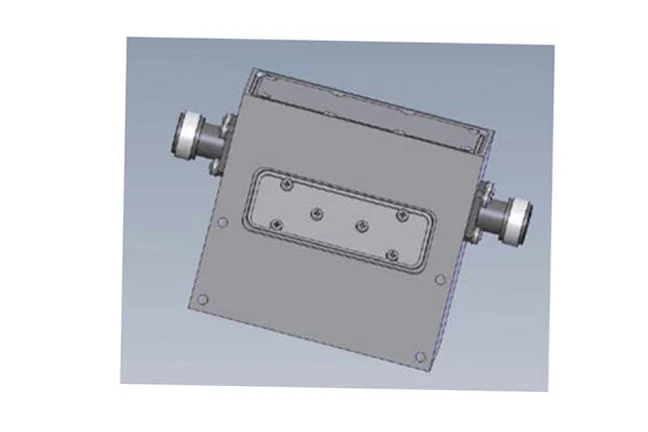

Product Name: GPS 516-01

BSC offer a wide range of high performance filters for GPS applications. The GPS 516 filter is a compact notch filter centred on GPS L1. Fitted to the output of high power transmitters in a ruggedized environment it allows simultaneous operation of the high power transmitter whilst protecting co-located GPS L1 receivers by over 60dB.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, BSC Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband		Passband Insertion Loss	Return Loss	Rejection			Power Handling from 500 to 2500 MHz	Operating temperature	Connectors	Finish
				from 1575 to 1626.5 MHz	1570 to 1581 MHz	1616 to 1627 MHz
500 to 1500 MHz	1750 to 2500 MHz	1.5 dB max	12 dB min	30 dB min	60 dB min	50 dB min	100 W CW max	-33 to 55°C	N-Type Female	Matt Black
