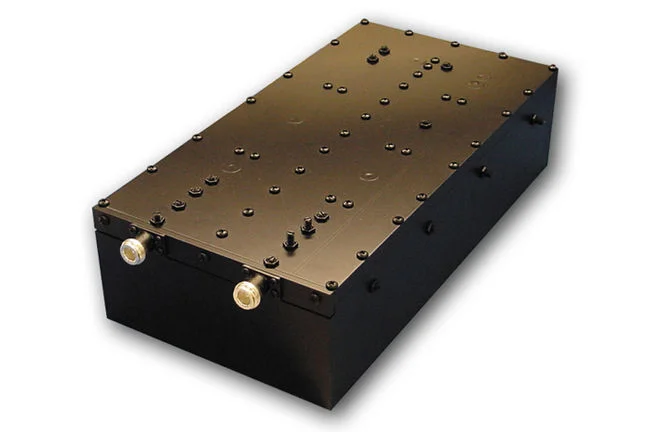

WSN-00112

SMR Notch Filter for A-Band Service Providers (DC-846.5 & 869-891.5 MHz)

Overview

Product SKU ID :

Product Name : WSN-00112

Specific Design for A-Side Service Providers

Elliptic Response; Sharp Roll-off; High-Power

High Rejection; >40 dB @ 851 MHz

Low Loss; 0.5 dB Typical @ 846.5 MHz

Single Sector Assembly Model Available

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passbands	Passband Insertion Loss		Passband Return Loss	Rejection 851-866 MHz	869-891.5 MHz Power Handling:
	DC-846.5 MHz	869-891.5 MHz			CW	Peak Instantaneous
DC-846.5 MHz 869-891.5 MHz	0.65 dB maximum	0.65 dB maximum	15 dB minimum	37 dB minimum	500 watts	10,000 watts

Dimensions (excluding connectors)	Weight	Connectors	Operating Temperature	Storage Temperature	Operating Humidity	Single Sector Assembly	Dimensions	Weight	Connectors
12.78” x 7.25” x 3.5” [324.6 x 184.2 x 88.9mm]	12.5 lbs. nominal	N – F	-10 to +65°C	-40 to +85°C	0 to 90%, non condensing	WSA-00140 (Dual Notch Filters)	23” Rack x 3U H x 15.27” Deep [584.2 x 3U x 387.9mm]	31 lbs. nominal	N-F (Rear Chassis Accessible)
