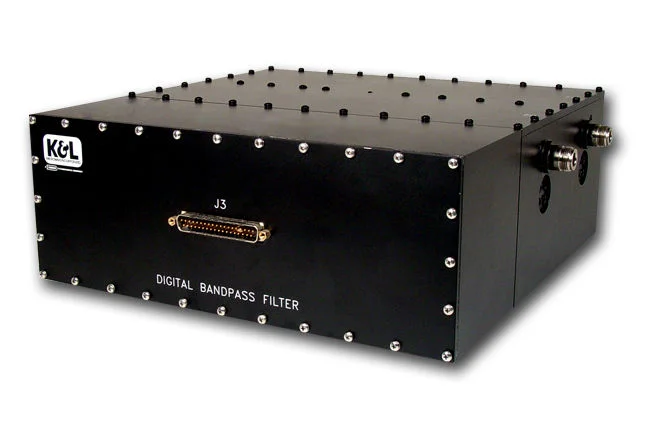

VHF Ruggedized Bandpass

D3HBTM-100/164-1-N/N-ERI


MPG_KLM_FL_BP_TUN_CA_MUL_D2HBTM-85-165-0.5-N-N-BRI

Overview

Product Name : D3HBTM-100/164-1-N/N-ERI

High "Q" / VHF frequency band 100 to 164 MHz.

Digitally-Controlled / Remote BCD Interface

When configured with a VHF Transceiver, provides filtering solutions to eliminate co-location interference.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

Tuning Range 3 dB Bandwidth Filter shape factor 30 dB BW / 3 dB BW VSWR Insertion loss RF Impedance RF Power Handling RF Connectors Data Connector
100 MHz-164 MHz >800 KHz 4.5:1 (3.5:1 Nominal) 1.5:1 maximum 2.7 dB maximum 2.4 dB typical 50 ohms 40 watts average 160 watts peak 'N' Type 37 Pin 'D'
Control Interface Operating Temperature Storage Temperature Tuning Time (Entire Range) Tuning Accuracy Supply Power Humidity EMC intent

'BCD' 16 line parallel std.

GPIB, RS-232, RS-422 opt.

-20 to 45°C -40 to 70°C

7 seconds typ.

10 seconds max.

25 kHz typical

50 kHz maximum

24 VDC to 33 VDC std.

12 VDC, 110 VAC opt.

95% Storage

85% Operation

Mil Std 461
