Tunable Cavity Band Pass Filters

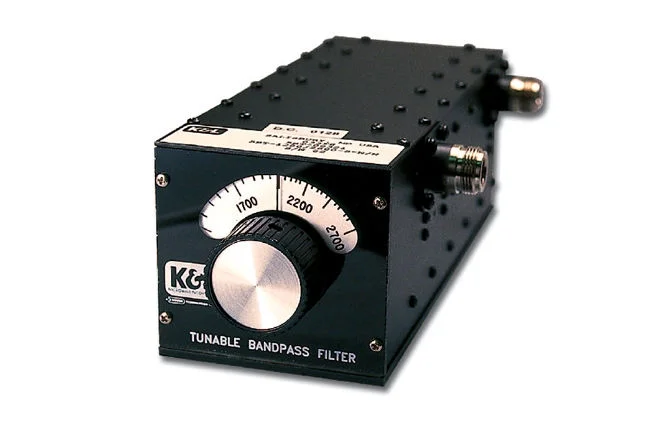

5BT 1 Percent Manual Tuner

OVERVIEW

While other manufacturers provide off-the-shelf bandpass and band reject products, our experienced engineers work collaboratively with customers to design microwave Cavity Filters tailored to individual manufacturing specifications, enhancing parameters such as insertion loss and power handling capacity through specialized package configurations. VHF and UHF in bandpass and band reject designs.

Frequency Range: 0.03 to 40 GHz

Bandwidth: .2% to 10%

Find Products   Catalog



About The Technology

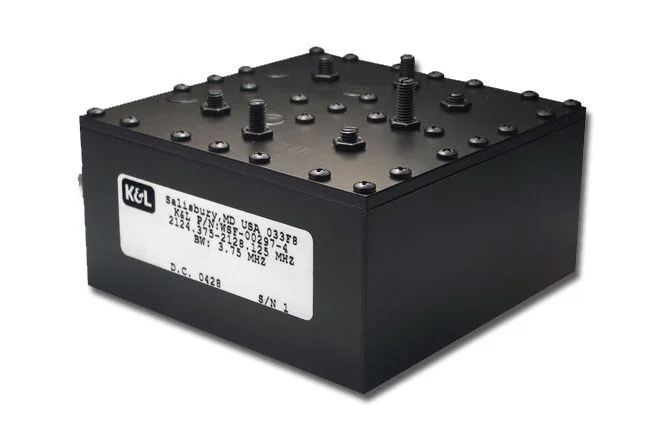

MPG_KL_BP_F_Cavity_WSF-00297

CAVITY

Rugged components, combined with our bespoke product design, ensures optimized performance for multiple industries and applications, including harsh environments.

Product Inquiry

MPG Sales

Ordering Information

Parts & Quotes

- Please request a quote on a specific designs.

- When considering a particular family of parts, use Filter Wizard and QuEST to determine specific part number.

Features & Specifications

While MPG’s RF Cavity Filters offer VSWR specifications of 1.5:1 maximum in a standard design, the series lends itself to specifications as low as 1.2:1 when properly tailored to end-user specifications. Since the package size can be optimized for performance requirements, there are no size limits for our microwave Cavity Filters.

MPG RF Cavity Filters can be purpose-built to the following specifications:

RF Cavity Filter frequency: VHF and UHF from 0.03 to 40 GHz (L band, S band, C band, X band, Ku band, K band, Ka band)

RF Cavity Filter features: Microwave Cavity Filters are available in bandwidths from .2% to 50%, in low loss configurations of 3 to 17 sections. Filters are available in a Q range of 1500 to 5000 with bandpass, band reject designs available.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because MPG RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
