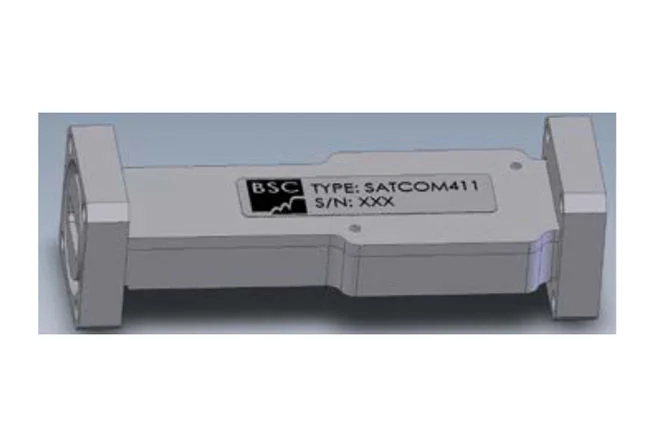

K BAND TRANSMIT FILTER

SATCOM 411-02

Overview

Product SKU ID :

Product Name : SATCOM 411-02

Optimised for low insertion loss and high isolation of the receive band, this filter is ideal for incorporation onto feed arm assemblies.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of BSC's packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market Categories

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 30.0 GHz to 31.0 GHz	Rejection from 17.3 GHz to 18.3 GHz	Power Handling	Operating temperature	Connectors	External Finish
20.2 to 21.2 GHz	0.2 dB max	20 dB min	70 dB min	30 dB min	5 W max	-55 to 85°C	PBR220 Flange	Gloss White
