Ku BAND RECEIVE FILTER

SATCOM 400-01

Overview

Product SKU ID :

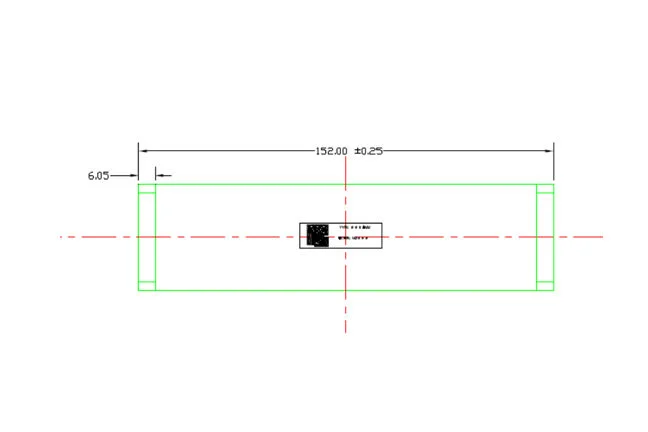

Product Name : SATCOM 400-01

This Ku Band Satcom receive filter has been specifically designed to mitigate interference from adjacent Ka Band transmit uplink terminals in a teleport environment. Painted gloss white with waveguide flange connections, this unit lends itself to the feed arm LNB integration.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 17.3 GHz to 18.4 GHz	Power Handling	Operating Temperature	Connectors		External Finish
10.7 to 12.75 GHz	0.25 dB max	18 dB min	90 dB min	1 mW max	-20 to 50°C	UBR120 Flange	PBR120 Flange	Gloss White
