X BAND TRANSMIT FILTER

SATCOM 386-02

Overview

Product SKU ID :

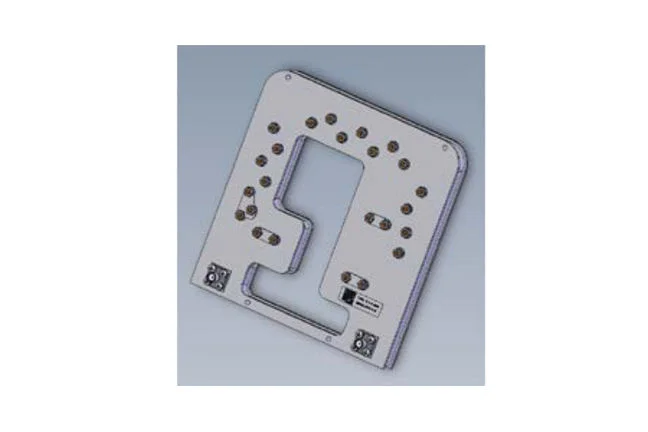

Product Name : SATCOM 386-02

A compact form factor, with ultimate weight relief ensures this X Band transmit filter can handle 50 W of transmit power and high receiver protection whilst offering a lightweight solution suitable for man-portable requirements.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of K&L MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from DC to 7.75 GHz	Power Handling	Operating temperature	Connectors	External Finish
7.9 to 8.4 GHz	0.5 dB max	18 dB min	75 dB min	50 W max	-30 to 60°C	SMA Female	Gloss Black
