X BAND RECEIVE FILTER

SATCOM 371-01

Overview

Product SKU ID :

Product Name : SATCOM 371-01

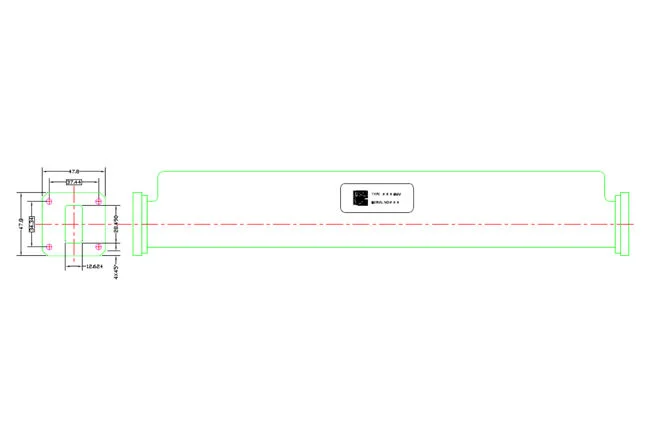

Designed to protect X Band Satcom receivers, this filter takes advantage of BSC’s pseudo-elliptic design technology to offer exceptional levels of rejection of the transmitter signal. Finished with UBR84 flanges and painted gloss black, the filter can also be made available with other flange styles and in other colours to suit external mounting.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of BSC's packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market Categories

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 7.9 to 8.4 GHz	Power Handling	Operating Temperature	Connectors	External Finish
7.25 to 7.75 GHz	0.5 dB max	18 dB min	100 dB min	5 W max	-20 to 50°C	UBR84	Gloss Black
