X BAND RECEIVE FILTER

SATCOM 366-01

Overview

Product SKU ID :

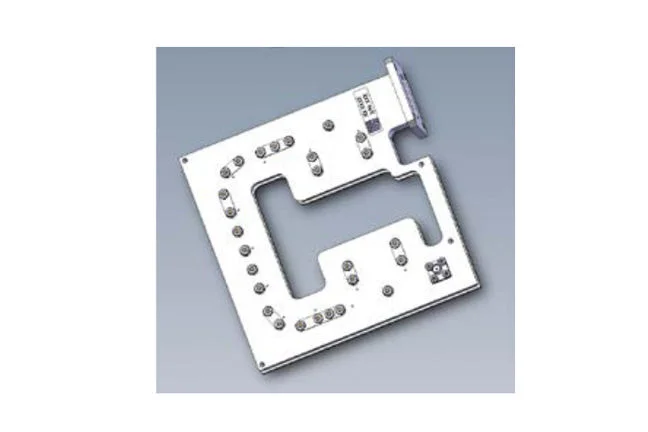

Product Name : SATCOM 366-01

Designed for man-portable X Band Satcom reception, this filter has been designed to minimise insertion loss and weight, whilst offering class leading rejection of the Tx signal due to BSC’s pseudo-elliptic technology. This filter also benefits from an integrated coaxial output to ease system assembly.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 7.9 to 8.4 GHz	Group Delay	Power Handling	Operating temperature	Connectors		External Finish
7.25 to 7.75 GHz	0.5 dB max	17 dB min	70 dB min	8 nS max / Band	5 W max	-20 to 60°C	UBR84	SMA Female	Silver Plate
