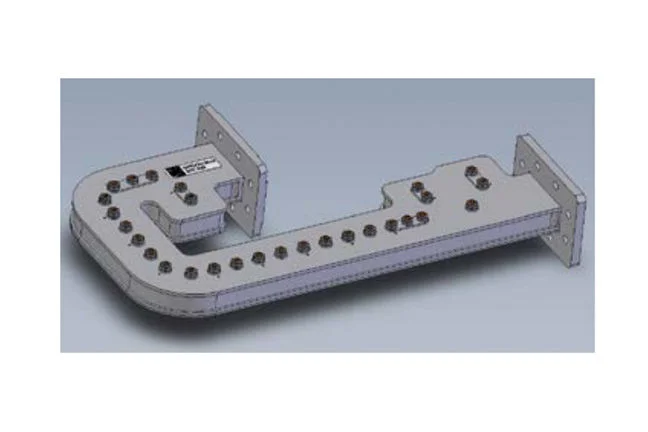

SATCOM 364-01

Overview

BSC’s excellence in filter design has enabled it to offer a C Band receive filter with waveguide flanges, for ease of integration into a waveguide feed arm assembly; but with extended rejection bands allowing use in congested EM environments, such as those found aboard maritime platforms where physically adjacent high power transmitters may lead to a desensitisation of the C Band LNB.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 7.9 to 8.4 GHz	Group Delay	Power Handling	Operating temperature	Connectors	External Finish
7.25 to 7.75 GHz	0.5 dB max	17 dB min 17 dB min 17 dB min	85 dB min	5 nS max / 500 MHz	5 W max	-32 to 65°C	CPR112G	Silver Plate
							CPR112F
