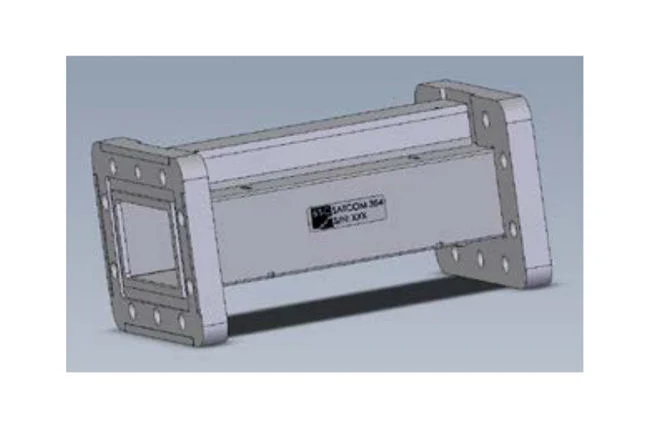

SATCOM 354-01

Overview

Product SKU ID:

Product Name : SATCOM 306-01

For Ka Band satellite Uplink channels, BSC offer this low loss compact filter. Designed to be mounted directly on the feed arm, this filter is painted white and sealed to allow outdoor use. Fitted as standard with UG599 flanges; other flanges and paint finishes are available, please contact the factory for further details.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss at Fc	Insertion Loss at Bandedge	Return Loss	Rejection at 3.65 GHz	Rejection at 4.25 GHz	Power Handling	Operating temperature	Connectors	External Finish
3.7 to 4.2 GHz	0.5 dB max	1.25 dB max	14 dB min	25 dB min	25 dB min	5 W max	-20 to 50°C	CPR229F Flange	Gloss White
								CPR229G Flange
