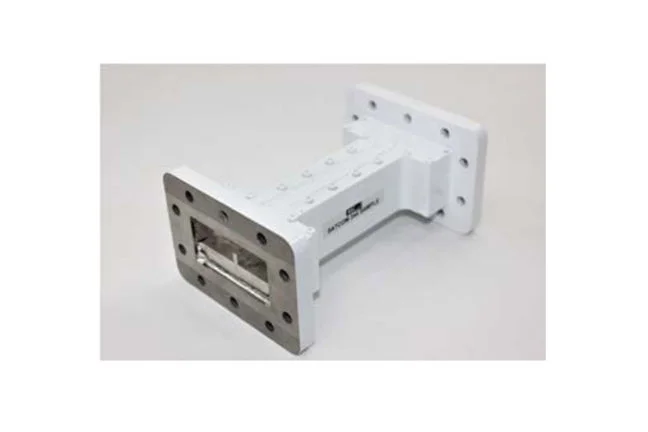

C BAND RECEIVE FILTER

SATCOM 344-01

Overview

Product SKU ID :

Product Name : SATCOM 344-01

BSC’s excellence in filter design has enabled it to offer a C Band receive filter with waveguide flanges, for ease of integration into a waveguide feed arm assembly; but with extended rejection bands allowing use in congested EM environments, such as those found aboard maritime platforms where physically adjacent high power transmitters may lead to a desensitisation of the C Band LNB.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of BSC's packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market Categories

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from DC to 3.185 GHz:	Rejection from 4.55 to 11.0 GHz:	Power Handling	Operating temperature	Connectors	External Finish
3.625 to 4.2 GHz	0.5 dB max	17 dB min	60 dB min	60 dB min	5 W max	-40 to 85°C	UDR40 Flange	Gloss White
