SATCOM 306-01


MPG_BSC_FL_BP_FIX_WG_CM_SATCOM-306-01

Overview

Product SKU ID:

Product Name : SATCOM 306-01

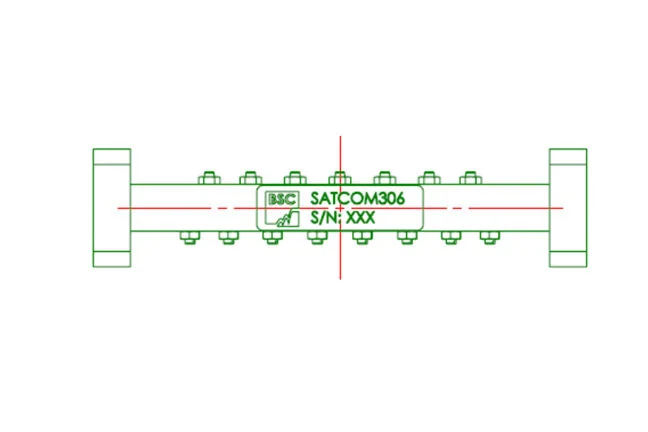

For Ka Band satellite Uplink channels, BSC offer this low loss compact filter. Designed to be mounted directly on the feed arm, this filter is painted white and sealed to allow outdoor use. Fitted as standard with UG599 flanges; other flanges and paint finishes are available, please contact the factory for further details.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications

Passband Insertion Loss Passband Flatness Return Loss Rejection from DC to 9.8 GHz Rejection from 9.8 to 10.3 GHz Rejection from 10.3 to 29.05 GHz Power Handling Operating Temperature Group Delay Flanges External Paint Finish
30 to 31 GHz 1.0 dB max 0.5 dB 20 dB min 90 dB min 80 dB min 60 dB min 5 W -20 to 50°C 1 nS / band, 0.5 nS / any 40 MHz UG599/U Gloss White
