ATC 506-01

Overview

Product SKU ID:

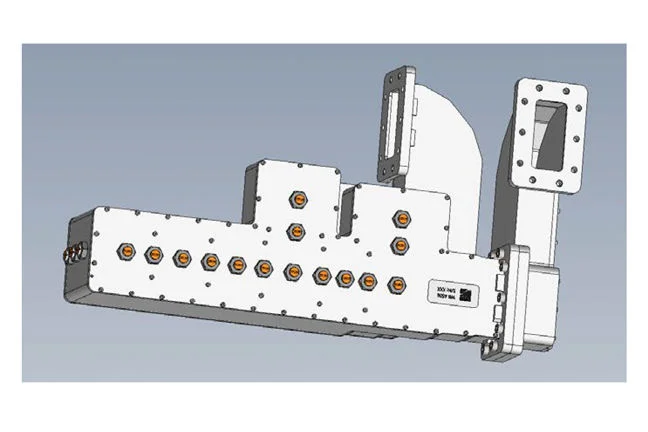

Product Name : ATC 506-01

BSC have leveraged over 30 years of waveguide design experience to produce a range of filters suitable for incorporation into Air Traffic Control (ATC) systems either as a retrofit or new OEM design. Designs can be optimised for use within the transmit chain, protecting sensitive 4G/LTE mobile phones and base stations; or within the receive chain to mitigate the desensitising effects of adjacent 4G/LTE cell towers.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from DC to 2.6 GHz	Rejection from 2.6 to 2.69 GHz	Rejection from 3.4 to 3.5 GHz	Rejection from 3.5 to 3.6 GHz	Power Handling	Operating Temperature	Connectors	External Finish	Dimensions
2.75 to 3.051 GHz	0.25 dB max	18 dB min	55 dB min	50 dB min	52 dB min	58 dB min	10 kW peak	0 to 50°C	WG10 Flange	Matt Black	540 x 295 x 140 mm typical
