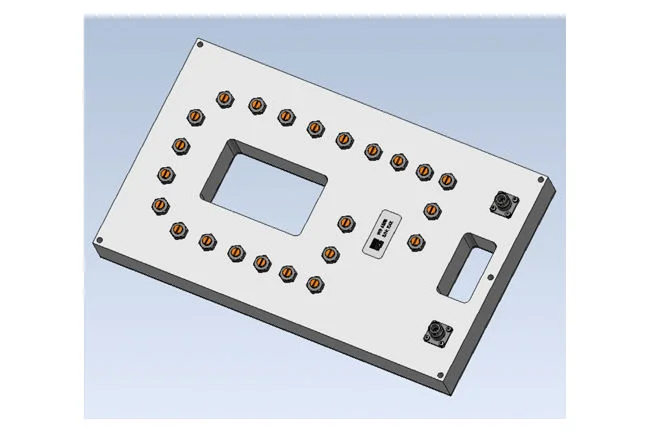

Product Name : ATC 505-01

BSC have leveraged over 30 years of waveguide design experience to produce a range of filters suitable for incorporation into Air Traffic Control (ATC) systems either as a retrofit or new OEM design. Designs can be optimised for use within the transmit chain, protecting sensitive 4G/LTE mobile phones and base stations; or within the receive chain to mitigate the desensitising effects of adjacent 4G/LTE cell towers.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

PassbandInsertion LossPassband FlatnessGroup Delay VariationReturn LossRejection from DC to 2.7 GHzRejection from 3.1 to 3.6 GHzPower HandlingConnectorsExternal FinishDimensionsOperating Temperature
2.75 to 2.9 GHz0.4 dB max0.4 dB max20 nS max17 dB min60 dB min60 dB min300 W peakN-Type FemaleMatt Black440 x 261 x 55 mm10 to 40°C
N-Type Male
