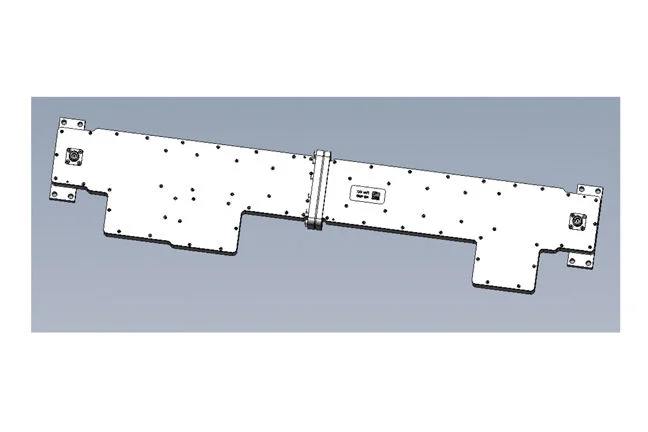

Product Name : ATC 504-01

BSC have leveraged over 30 years of waveguide design experience to produce a range of filters suitable for incorporation into Air Traffic Control (ATC) systems either as a retrofit or new OEM design. Designs can be optimised for use within the transmit chain, protecting sensitive 4G/LTE mobile phones and base stations; or within the receive chain to mitigate the desensitising effects of adjacent 4G/LTE cell towers.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Deviation from Linear Phase	Group Delay Variation	Return Loss	Rejection from 2.5 to 2.675 GHz	Rejection from 3.1 to 3.6 GHz	Power Handling	Connectors	External Finish	Dimensions	Operating Temperature
2.745 to 3.055 GHz	0.2 dB max	1° max / any 5 MHz	60 nS max	17 dB min	60 dB min : 60 dB min	60 dB min	10 kW normal	N-Type Female	Matt Black	882 x 64 x 169 mm	10 to 40°C
