Product Name: ATC 503-01

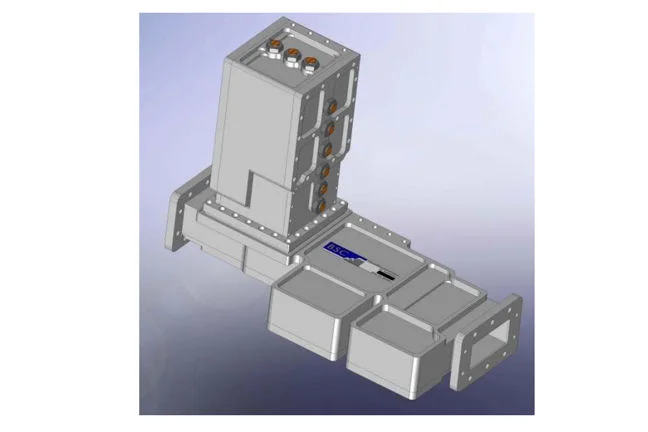

BSC has leveraged over 30 years of waveguide design experience to produce a range of filters suitable for incorporation into Air Traffic Control (ATC) systems either as a retrofit or new OEM design. Designs can be optimized for use within the transmit chain, protecting sensitive 4G/LTE mobile phones and base stations; or within the receive chain to mitigate the desensitising effects of adjacent 4G/LTE cell towers.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

PassbandInsertion LossDeviation from Linear PhaseGroup Delay VariationReturn LossRejection from 2.5 to 2.675 GHzRejection from 3.4 to 3.75 GHzPower HandlingConnectorsExternal FinishDimensionsOperating temperature
2.745 to 3.055 GHz0.2 dB max1° / any 5 MHz60 nS max17 dB min50 dB min
: 60 dB min
50 dB min10 kW normalWG10 FlangeMatt Black400 x 180 x 380 mm10 to 40°C
65 kW in fault condition
