ATC 502-01

Overview

Product SKU ID:

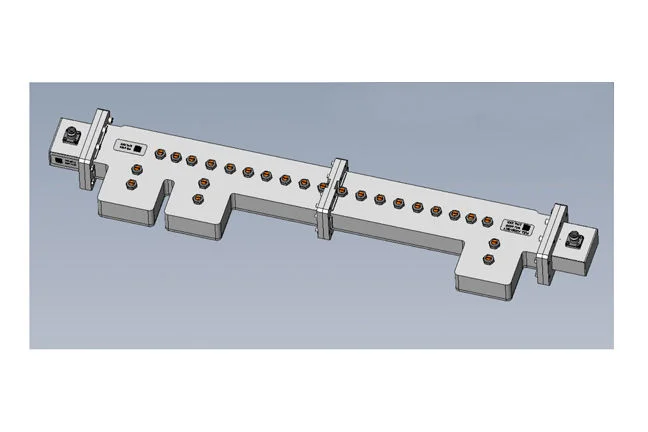

Product Name : ATC 502-01

BSC have leveraged over 30 years of waveguide design experience to produce a range of filters suitable for incorporation into Air Traffic Control (ATC) systems either as a retrofit or new OEM design. Designs can be optimised for use within the transmit chain, protecting sensitive 4G/LTE mobile phones and base stations; or within the receive chain to mitigate the desensitising effects of adjacent 4G/LTE cell towers.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from DC to 2.69 GHz	Rejection from 3.1 to 3.6 GHz	Power Handling	Operating temperature	Connectors	External Finish	Dimensions
2.74 to 2.9 GHz	0.38 dB max	17 dB min	80 dB min	60 dB min	200 W CW	0 to 40°C	N-Type Female	Gloss Black	955 x 182 x 82 mm
							N-Type Male
