ATC 500-01

Overview

Product SKU ID:

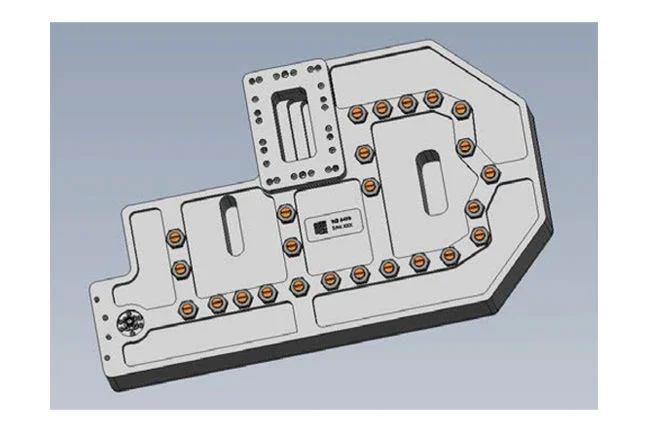

Product Name : ATC 500-01

BSC have leveraged over 30 years of waveguide design experience to produce a range of filters suitable for incorporation into Air Traffic Control (ATC) systems either as a retrofit or new OEM design. Designs can be optimised for use within the transmit chain, protecting sensitive 4G/LTE mobile phones and base stations; or within the receive chain to mitigate the desensitising effects of adjacent 4G/LTE cell towers.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links

Market

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Group Delay Variation	Return Loss	Rejection from DC to 2.675 GHz	Rejection from 3.4 to 3.5 GHz	Rejection from 3.5 to 3.6 GHz	Power Handling	Operating temperature	Connectors	External Finish	Dimensions
2.72 to 3.1 GHz	0.4 dB max	12 nS max	18 dB min	60 dB min	45 dB min	50 dB min	200 W peak	0 to 70°C	WG10 Flange	Matt Black	448.2 x 271 x 63.4 mm
									SMA Male
