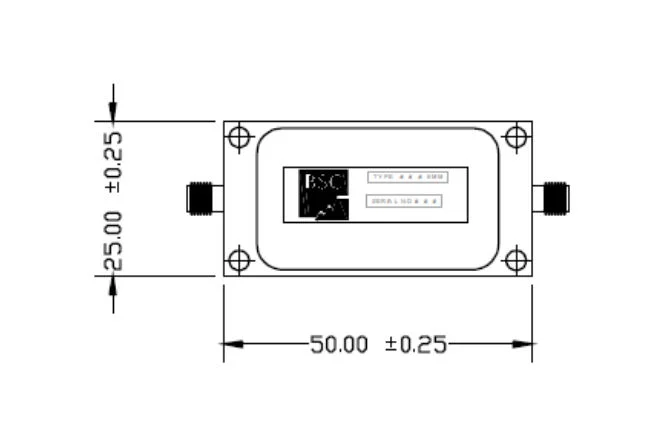

EW 456-01


EW-456-01

Overview

This Ku Band filter is ideal for use in the front end of Ku Band receivers. It also offers good isolation over the entire EW spectrum.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because of the rugged package design, small size, high Q, and temperature stability, MPG’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Applications

Product Specifications

Passband Insertion Loss Return Loss Rejection from DC to 12.1 GHz Rejection from 20.4 to 26.0 GHz Power Handling Operating temperature Connectors External Finish
13.96 to 18.0 GHz 1.5 dB max 12 dB min 50 dB min 50 dB min +20 dBm max 0 to 50°C SMA Female Matt Black
