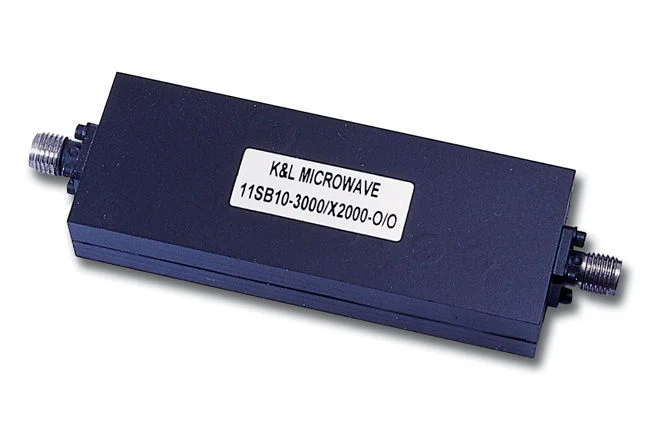

Suspended Substrate Fixed Band Pass Filters


SuspendedSubstrate_Bandpass

Overview

Suspended Substrate Filters combine high Q factor and low-loss performance into a durable and temperature stable small package.L band, S band, C band, X band, Ku band, K band, Ka band and V band in bandpass, band reject, bandpass, high pass, low pass, diplexer and multiplexer designs.

  • Broadband Design
  • Covers 3 GHz to 12 GHz Center Frequency Range
  • IL Passband from 50 to 100% (See table below for examples)
  • Excelent Environmental Performance
  • Ruggedized Package Design
  • Custom Designs Available*

Frequency Range: 1 to 12 GHz

Bandwidth: 50% to 100%

Find Products Catalog

Part NumberPassband @ <= 1 dB (GHz)VSWRAvg. Power (Watts)Shape Factor (3dB - 30 dB)
Impedance (Ohms)
11SB10-4000/T4000-O/O2-6  2:1151.3:1*50
11SB10-6000/T6000-O/O2-82:1151.3:1*50
11SB10-9000/T6000-O/O6-122:1151.3:1*50
11SB10-12000/T12000-O/O6-182:1151.3:1*50

**Dimensions
Part NumberLWH
11SB10-4000/T4000-O/O2.1 / 53.3 1.4 / 35.6 0.5 / 12.7
11SB10-6000/T6000-O/O1.9 / 48.3 1.2 / 30.50.5 / 12.7
11SB10-9000/T6000-O/O2.0 / 50.8  0.9 / 22.90.5 / 12.7
11SB10-12000/T12000-O/O1.6 / 40.60.9 / 22.90.5 / 12.7

*Designs also available to offer 3 dB - 50 dB shape factor up to 1.15:1. Contact factory for details.
** Dimensions are determined with SMA connectors. Contact the factory for custom requirements.

Shock20 G’s, 1/2 Sine, 11 Ms
Vibration
10 G’s, 10 HZ - 2000 Hz
Temperature-55 to +85°C
Rel. Humidity0 — 95%

Example To Order:
11SB10 — 4000/T4000 — O / O

Example11SB104000T4000OO
Code123456789
CodeDescription
1Number of Sections: 3-6
2Suspended Substrate
3Series (Band Pass)
4Package (Contact Factory)
5Center Frequency
6Supplemental Codes (See Page 13 of Catalog)
7Bandwidth
8Input Connector : See Connector Table
9Output Connector: See Connector Table
ConnectorCode
SMA FemaleO
SMA MaleOP

About the technology

MPG_KLM_FL_BP_FIX_SS_MUL_11SB10-2050-X1300-O-O

Suspended Substrate

Through the use of a photo-etched, copper clad substrate, Suspended Substrate Filters utilize air as the dielectric. The result is a filter capable of producing wide passbands and faster roll-off of stopbands. The printed circuit technology used in our Suspended Substrate Filters also supports complex mechanical configurations by allowing other structures to be printed on the suspended substrate, including Combline Filters, Interdigital Filters, Hairpin Filters and Bandstop (Notch) Filters. Highpass and lowpass Suspended Substrate Filters can also be interconnected to create broadband bandpass filters or diplexers. The durable construction of the Suspended Substrate Filter can be customized to meet all relevant military specifications, including those for vibration, since the interior walls in the housing are designed to hold the circuit and prevent movement.

Product Inquiry

Features & Specifications

MPG has a lengthy history in innovating microwave filters, and the Suspended Substrate line is no exception. We employ our engineering proficiency to create an environmentally flexible alternative to traditional broadband component filters and multiplexers.

Since the filter characteristics are determined solely by the mechanical accuracy of the housing and the printed circuit board, excellent reproducibility can be achieved by using a suspended substrate approach.

Frequency: L band, S band, C band, X band, Ku band, K band, Ka band and V band from 1 to 120 GHz.

Features: Suspended Substrate Filters are available in bandwidths from 50% to 100% and offer a Q range of 250 to 750 in 3 to 11 sections. Connectorized mounts are available. Suspended substrate filters are manufactured in bandpass, band reject, bandpass, high pass, low pass, diplexer and multiplexer designs.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Application

Because of the rugged package design, small size, high Q, and temperature stability, MPG’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
