EQ 476-04

Overview

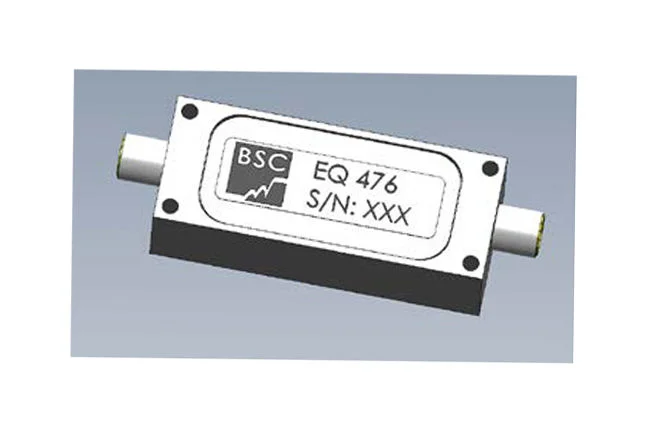

For compensation of frequency related loss within systems such as that incurred when using long cable runs from receivers to antennas, BSC offer a full range of passive Equalisers with negative gain slopes (loss decreases with frequency) covering a selection of ranges from the full EW spectrum to narrow bands.

Gain slopes are typically linear best-fit straight line, but parabolic equalisation is also offered. Frequency Coverage is offered from 300 MHz to 18 GHz, with surface mount or coaxial connectors and in tubular or traditional rectangular enclosures.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because of the rugged package design, small size, high Q, and temperature stability, K&L Microwave’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications Section

Frequency Range	Insertion Loss at 18.0 GHz	Differential Insertion Loss at 0.5 GHz	Linearity	Return Loss	Power Handling	Operating temperature	Connectors	External Finish
0.5 to 18.0 GHz	1.5 dB max	14.5 ±0.75 dB max	±0.75 dB	9.5 dB min	1 W CW max	-30 to 65°C	SMA Female	Matt Black
