GPS 509-01


GPS-509-01

Overview

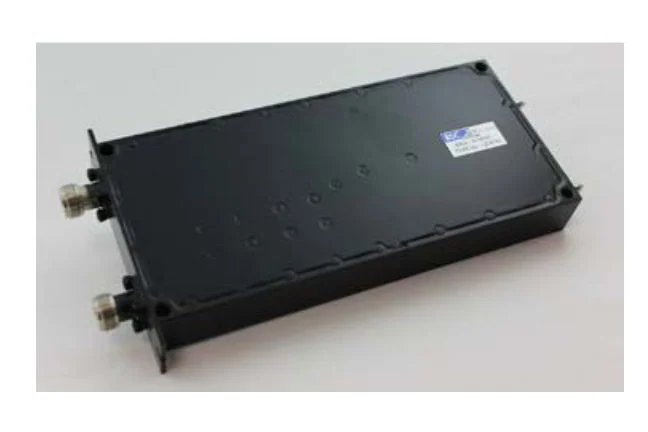

BSC offer a wide range of high performance filters for GPS applications. The GPS 509 filter is a wideband ruggedized bandpass filter with integrated notch designed to be fitted on the output of high power transmitter systems allowing simultaneous operation of a high power emitter whilst protecting co-located GPS L1/L2 receivers.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

DefenseCommunicationsATE

Applications

Product Specifications Section

Passband 1000 to 1152.6 MHz
1302.6 to 1485.42 MHz
1665.42 to 2500 MHz
Passband Insertion Loss 1.5 dB max
Passband Flatness 1.0 dB max
Return Loss 14 dB min
Rejection from DC to 900 MHz 40 dB min
                            1217.6 to 1237.6 MHz 30 dB min
                            1565.42 to 1585.42 MHz 30 dB min
                            2700 to 7250 MHz 45 dB min
                            7250 to 7750 MHz 50 dB min
Power Handling from DC to 900 MHz 5 W CW max
                            1000 to 2500 MHz 100 W CW max
                            2500 to 7750 MHz 5 W CW max
Operating temperature -33 to 55°C
Connectors N-Type Female
External Finish Matt Black
