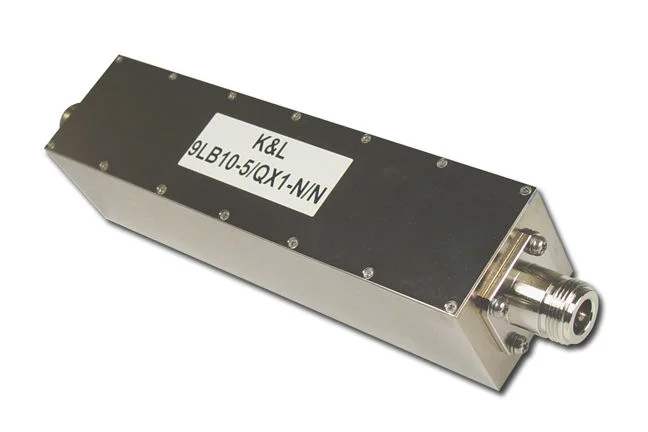

9LB10-5/QX1-N/N (High Power)

MPG_KLM_FL_BP_FIX_LE_MUL_9LB10-5-QX1-N-N

Overview

Product SKU ID :

Product Name : 9LB10-5/QX1-N/N

High "Q"

Type N Connectors

Low Loss

90 dB Stopbands

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Insertion Loss	VSWR	Stopbands	Power	Environmental Sepcs				Dimensions	Connectors
<2.0 dB @ 4.5 TO 5.5 MHz	2.0:1 Across passband	>90 dB at DC to 2.5 and 6.9 to 1000 MHz	50 Watts CW	Shock	Vibration	Temperature	Relative Humidity	6.0" X 1.5" X 1.5"	Type N
				20 G’s, 1/2 Sine, 11 ms	10 G’s, 10-20,00 Hz	-55° to + 85° C	0-95%
